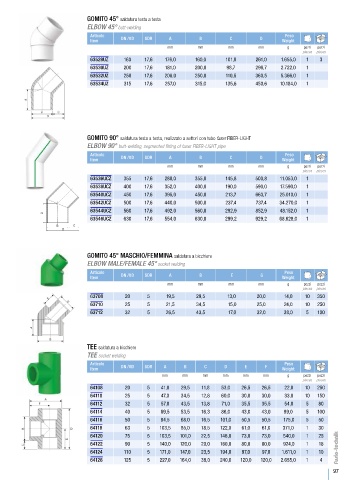

GOMITO 45° saldatura testa a testa
ELBOW 45° butt-welding
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63528UZ 160 17,6 176,0 160,0 101,0 261,0 1.655,0 1 3
63530UZ 200 17,6 181,0 200,0 98,7 298,7 2.722,0 1
63532UZ 250 17,6 208,0 250,0 110,5 360,5 5.366,0 1
63534UZ 315 17,6 257,0 315,0 135,6 450,6 10.184,0 1

GOMITO 90° saldatura testa a testa, realizzato a settori con tubo faser FIBER-LIGHT
ELBOW 90° butt-welding, segmented fitting of faser FIBER-LIGHT pipe
Articolo Peso

Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63536UCZ 355 17,6 280,0 355,0 145,8 500,8 11.053,0 1
63538UCZ 400 17,6 352,0 400,0 190,0 590,0 17.590,0 1
63540UCZ 450 17,6 395,0 450,0 213,7 663,7 25.010,0 1
63542UCZ 500 17,6 440,0 500,0 237,4 737,4 34.270,0 1
63544UCZ 560 17,6 492,0 560,0 292,9 852,9 48.152,0 1
A
63546UCZ 630 17,6 554,0 630,0 299,2 929,2 68.628,0 1
B C
D

GOMITO 45° MASCHIO/FEMMINA saldatura a bicchiere
ELBOW MALE/FEMALE 45° socket welding
Articolo Peso
Item DN /OD SDR A B E G Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63708 20 5 19,5 29,5 13,0 20,0 14,0 10 350
63710 25 5 21,5 34,5 15,0 25,0 24,0 10 250
63712 32 5 26,5 43,5 17,0 32,0 38,0 5 100

TEE saldatura a bicchiere
TEE socket welding
Articolo Peso

Item DN /OD SDR A B C D E F Weight
mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64108 20 5 41,0 29,5 11,8 53,0 26,5 26,5 22,0 10 250
64110 25 5 47,0 34,5 12,8 60,0 30,0 30,0 33,0 10 150
64112 32 5 57,0 43,5 13,8 71,0 35,5 35,5 54,0 5 80
64114 40 5 69,5 53,5 16,3 86,0 43,0 43,0 99,0 5 100
64116 50 5 84,5 68,0 16,5 101,0 50,5 50,5 175,0 5 50
64118 63 5 103,5 85,0 18,5 122,0 61,0 61,0 371,0 1 30
64120 75 5 103,5 101,0 22,5 146,0 73,0 73,0 540,0 1 25
64122 90 5 140,0 120,0 20,0 160,0 80,0 80,0 924,0 1 16
64124 110 5 171,0 147,0 23,5 194,0 97,0 97,0 1.611,0 1 10
64126 125 5 227,0 164,0 38,0 240,0 120,0 120,0 2.655,0 1 4
