Page 101 - AQUATECHNIK - FUSIO-TECHNIK

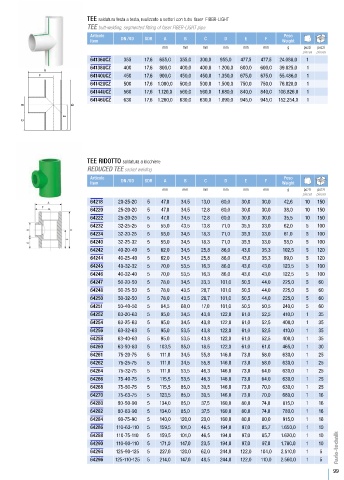

P. 101
TEE saldatura testa a testa, realizzato a settori con tubo faser FIBER-LIGHT
TEE butt-welding, segmented fitting of faser FIBER-LIGHT pipe
Articolo Peso
Item DN /OD SDR A B C D E F Weight
mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64136UCZ 355 17,6 655,0 355,0 300,0 955,0 477,5 477,5 24.088,0 1
64138UCZ 400 17,6 800,0 400,0 400,0 1.200,0 600,0 600,0 39.025,0 1
A
F 64140UCZ 450 17,6 900,0 450,0 450,0 1.350,0 675,0 675,0 55.486,0 1
64142UCZ 500 17,6 1.000,0 500,0 500,0 1.500,0 750,0 750,0 76.028,0 1
64144UCZ 560 17,6 1.120,0 560,0 560,0 1.680,0 840,0 840,0 106.826,0 1
64146UCZ 630 17,6 1.260,0 630,0 630,0 1.890,0 945,0 945,0 152.254,0 1
B D
E
C
TEE RIDOTTO saldatura a bicchiere
REDUCED TEE socket welding
Articolo Peso
Item DN /OD SDR A B C D E F Weight
mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64218 20-25-20 5 47,0 34,5 13,0 60,0 30,0 30,0 42,6 10 150
64220 25-20-20 5 47,0 34,5 12,8 60,0 30,0 30,0 38,0 10 150
64222 25-20-25 5 47,0 34,5 12,8 60,0 30,0 30,0 35,5 10 150
64232 32-25-25 5 55,0 43,5 13,8 71,0 35,5 33,0 62,0 5 100
64234 32-20-25 5 55,0 34,5 18,3 71,0 35,5 33,0 61,0 5 100
64240 32-25-32 5 55,0 34,5 18,3 71,0 35,5 33,0 58,0 5 100
64242 40-20-40 5 62,0 34,5 25,8 86,0 43,0 35,3 102,5 5 120
64244 40-25-40 5 62,0 34,5 25,8 86,0 43,0 35,3 99,0 5 120
64245 40-32-32 5 70,0 53,5 16,3 86,0 43,0 43,0 123,5 5 100
64246 40-32-40 5 70,0 53,5 16,3 86,0 43,0 43,0 122,5 5 100
64247 50-20-50 5 78,0 34,5 33,3 101,0 50,5 44,0 225,0 5 60
64248 50-25-50 5 78,0 43,5 28,7 101,0 50,5 44,0 225,0 5 60
64250 50-32-50 5 78,0 43,5 28,7 101,0 50,5 44,0 225,0 5 60
64251 50-40-50 5 84,5 68,0 17,0 101,0 50,5 50,5 240,0 5 60
64252 63-20-63 5 95,0 34,5 43,8 122,0 61,0 52,5 410,0 1 35
64254 63-25-63 5 95,0 34,5 43,8 122,0 61,0 52,5 400,0 1 35
64256 63-32-63 5 95,0 53,5 43,8 122,0 61,0 52,5 410,0 1 35
64258 63-40-63 5 95,0 53,5 43,8 122,0 61,0 52,5 400,0 1 35
64260 63-50-63 5 103,5 85,0 18,5 122,0 61,0 61,0 465,0 1 30
64261 75-20-75 5 111,0 34,5 55,8 146,0 73,0 58,0 630,0 1 25
64262 75-25-75 5 111,0 34,5 55,8 146,0 73,0 58,0 630,0 1 25
64264 75-32-75 5 111,0 53,5 46,3 146,0 73,0 64,0 630,0 1 25
64266 75-40-75 5 115,5 53,5 46,3 146,0 73,0 64,0 630,0 1 25
64268 75-50-75 5 115,5 85,0 30,5 146,0 73,0 70,0 630,0 1 25
64270 75-63-75 5 123,5 85,0 30,5 146,0 73,0 70,0 680,0 1 16
64280 90-50-90 5 134,0 85,0 37,5 160,0 80,0 74,0 815,0 1 16
64282 90-63-90 5 134,0 85,0 37,5 160,0 80,0 74,0 780,0 1 16
64284 90-75-90 5 140,0 120,0 20,0 160,0 80,0 80,0 915,0 1 16
64286 110-63-110 5 159,5 101,0 46,5 194,0 97,0 85,7 1.650,0 1 10
64288 110-75-110 5 159,5 101,0 46,5 194,0 97,0 85,7 1.620,0 1 10
64290 110-90-110 5 171,0 147,0 23,5 194,0 97,0 97,0 1.780,0 1 10
64294 125-90-125 5 227,0 120,0 62,0 244,0 122,0 104,0 2.510,0 1 5
64296 125-110-125 5 214,0 147,0 48,5 244,0 122,0 110,0 2.560,0 1 5
99
