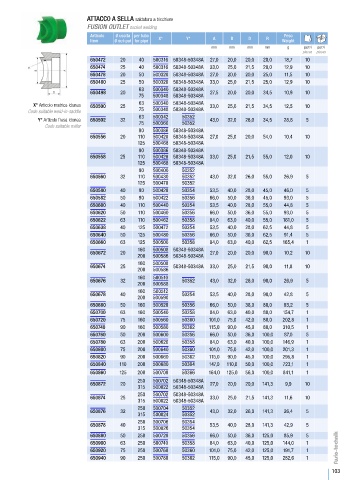

Page 105 - AQUATECHNIK - FUSIO-TECHNIK
P. 105
ATTACCO A SELLA saldatura a bicchiere
FUSION OUTLET socket welding
Articolo Ø uscita per tubo Peso
Item Ø out-put for pipe X* Y* A B D R Weight
mm mm mm mm g pezzi pezzi
pieces pieces
650472 20 40 500316 50348-50348A 27,0 20,0 20,0 20,0 18,7 10
650474 25 40 500316 50348-50348A 33,0 25,0 21,5 20,0 12,9 10
650478 20 50 500320 50348-50348A 27,0 20,0 20,0 25,0 11,5 10
650480 25 50 500320 50348-50348A 33,0 25,0 21,5 25,0 12,9 10
63 500340 50348-50348A
650498 20 75 500348 50348-50348A 27,5 20,0 20,0 34,5 10,9 10
X* Articolo matrice idonea 650500 25 63 500340 50348-50348A 33,0 25,0 21,5 34,5 12,5 10
Code suitable weld-in-saddle 75 500348 50348-50348A
63 500342 50352
Y* Articolo fresa idonea 650502 32 75 500360 50352 43,0 32,0 26,0 34,5 28,8 5
Code suitable miller
90 500386 50348-50348A
650556 20 110 500428 50348-50348A 27,0 25,0 20,0 54,0 10,4 10
125 500468 50348-50348A
90 500386 50348-50348A
650558 25 110 500428 50348-50348A 33,0 25,0 21,5 55,0 12,0 10
125 500468 50348-50348A
90 500400 50352
650560 32 110 500430 50352 43,0 32,0 26,0 55,0 26,9 5
125 500470 50352
650580 40 90 500420 50354 53,5 40,0 28,0 45,0 46,0 5
650582 50 90 500422 50356 66,0 50,0 36,0 45,0 93,0 5
650600 40 110 500440 50354 53,5 40,0 28,0 55,0 44,8 5
650620 50 110 500460 50356 66,0 50,0 36,0 55,0 93,0 5
650622 63 110 500462 50358 84,0 63,0 40,0 55,0 161,0 5
650638 40 125 500472 50354 53,5 40,0 28,0 62,5 44,8 5
650640 50 125 500480 50356 66,0 50,0 36,0 62,5 91,4 5
650660 63 125 500500 50358 84,0 63,0 40,0 62,5 165,4 1
160 500508 50348-50348A
650672 20 200 500586 50348-50348A 27,0 20,0 20,0 90,0 10,2 10
160 500508
650674 25 200 500586 50348-50348A 33,0 25,0 21,5 90,0 11,8 10
160 500510
650676 32 50352 43,0 32,0 26,0 90,0 26,9 5
200 500588
160 500512
650678 40 50354 53,5 40,0 28,0 90,0 42,8 5
200 500590
650680 50 160 500520 50356 66,0 50,0 36,0 80,0 93,2 5
650700 63 160 500540 50358 84,0 63,0 40,0 80,0 154,7 1
650720 75 160 500560 50360 101,0 75,0 42,0 80,0 202,8 1
650740 90 160 500580 50362 115,0 90,0 45,0 80,0 310,5 1
650760 50 200 500600 50356 66,0 50,0 36,0 100,0 87,0 5
650780 63 200 500620 50358 84,0 63,0 40,0 100,0 146,9 1
650800 75 200 500640 50360 101,0 75,0 42,0 100,0 201,3 1
650820 90 200 500660 50362 115,0 90,0 45,0 100,0 295,8 1
650840 110 200 500680 50364 147,0 110,0 50,0 100,0 723,1 1
650860 125 200 500700 50366 164,0 125,0 56,0 100,0 841,1 1
250 500702 50348-50348A
650872 20 315 500822 50348-50348A 27,0 20,0 20,0 141,3 9,9 10
250 500702 50348-50348A
650874 25 33,0 25,0 21,5 141,3 11,6 10
315 500822 50348-50348A
250 500704 50352
650876 32 43,0 32,0 26,0 141,3 26,4 5
315 500824 50352
250 500706 50354
650878 40 53,5 40,0 28,0 141,3 42,9 5
315 500826 50354
650880 50 250 500720 50356 66,0 50,0 36,0 125,0 85,9 5
650900 63 250 500740 50358 84,0 63,0 40,0 125,0 144,0 1
650920 75 250 500760 50360 101,0 75,0 42,0 125,0 191,7 1
650940 90 250 500780 50362 115,0 90,0 45,0 125,0 282,6 1
103
