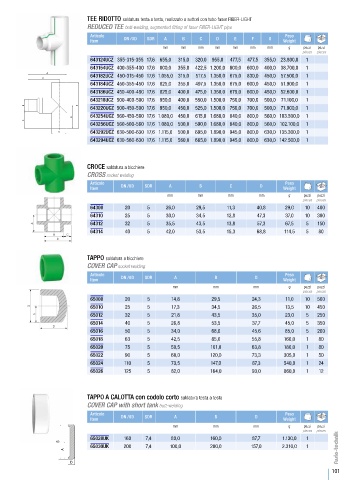

TEE RIDOTTO saldatura testa a testa, realizzato a settori con tubo faser FIBER-LIGHT
REDUCED TEE butt-welding, segmented fitting of faser FIBER-LIGHT pipe
Articolo Peso
Item DN /OD SDR A B C D E F G Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
643124UCZ 355-315-355 17,6 655,0 315,0 320,0 955,0 477,5 477,5 355,0 23.800,0 1
643154UCZ 400-355-400 17,6 800,0 355,0 422,5 1.200,0 600,0 600,0 400,0 38.700,0 1
A 643182UCZ 450-315-450 17,6 1.055,0 315,0 517,5 1.350,0 675,0 830,0 450,0 57.500,0 1
F
643184UCZ 450-355-450 17,6 825,0 355,0 497,5 1.350,0 675,0 600,0 450,0 51.900,0 1
643186UCZ 450-400-450 17,6 825,0 400,0 475,0 1.350,0 675,0 600,0 450,0 52.600,0 1
643218UCZ 500-400-500 17,6 950,0 400,0 550,0 1.500,0 750,0 700,0 500,0 71.100,0 1
643220UCZ 500-450-500 17,6 950,0 450,0 525,0 1.500,0 750,0 700,0 500,0 71.900,0 1
B D
643254UCZ 560-450-560 17,6 1.080,0 450,0 615,0 1.680,0 840,0 800,0 560,0 103.500,0 1
E
C
643256UCZ 560-500-560 17,6 1.080,0 500,0 590,0 1.680,0 840,0 800,0 560,0 102.100,0 1
G 643292UCZ 630-500-630 17,6 1.115,0 500,0 695,0 1.890,0 945,0 800,0 630,0 135.300,0 1
643294UCZ 630-560-630 17,6 1.115,0 560,0 665,0 1.890,0 945,0 800,0 630,0 142.500,0 1

CROCE saldatura a bicchiere
CROSS socket welding
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
64308 20 5 26,0 29,5 11,3 40,8 29,0 10 400
64310 25 5 30,0 34,5 12,8 47,3 37,0 10 300
64312 32 5 35,5 43,5 13,8 57,3 67,5 5 150
64314 40 5 42,0 53,5 15,3 68,8 114,5 5 80

TAPPO saldatura a bicchiere
COVER CAP socket welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
65008 20 5 14,8 29,5 24,3 11,0 10 500
65010 25 5 17,3 34,5 26,5 13,5 10 450
65012 32 5 21,8 43,5 35,0 23,0 5 250
65014 40 5 26,8 53,5 37,7 45,0 5 350
65016 50 5 34,0 68,0 45,6 85,0 5 200
65018 63 5 42,5 85,0 55,8 160,0 1 80
65020 75 5 50,5 101,0 63,8 180,0 1 80
65022 90 5 60,0 120,0 73,3 305,0 1 50
65024 110 5 73,5 147,0 87,3 540,0 1 24
65026 125 5 82,0 164,0 93,0 860,0 1 12

TAPPO A CALOTTA con codolo corto saldatura testa a testa
COVER CAP with short tank butt-welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
65028UK 160 7,4 80,0 160,0 87,7 1.130,0 1
B
65030UK 200 7,4 100,0 200,0 157,0 2.310,0 1
A

D
