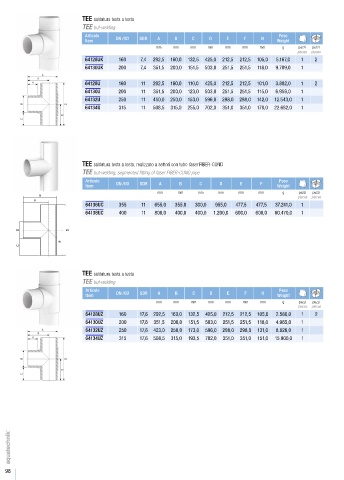

Page 100 - AQUATECHNIK - FUSIO-TECHNIK

TEE saldatura testa a testa
TEE but-welding
Articolo Peso
Item DN /OD SDR A B C D E F H Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64128UK 160 7,4 292,5 160,0 132,5 425,0 212,5 212,5 105,0 5.167,0 1 2
64130UK 200 7,4 351,5 200,0 151,5 503,0 251,5 251,5 118,0 9.709,0 1

64128U 160 11 292,5 160,0 110,0 425,0 212,5 212,5 101,0 3.882,0 1 2
64130U 200 11 351,5 200,0 123,0 503,0 251,5 251,5 115,0 6.956,0 1
64132U 250 11 450,0 250,0 153,0 596,0 298,0 298,0 142,0 12.543,0 1
64134U 315 11 508,5 315,0 255,0 702,0 351,0 351,0 178,0 22.682,0 1

TEE saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND
TEE but-welding, segmented fitting of faser FIBER-COND pipe
Articolo Peso
Item DN /OD SDR A B C D E F Weight
mm mm mm mm mm mm g pezzi pezzi
A pieces pieces
F
64136UC 355 11 655,0 355,0 300,0 955,0 477,5 477,5 37.241,0 1
64138UC 400 11 800,0 400,0 400,0 1.200,0 600,0 600,0 60.470,0 1

B D

E
C

TEE saldatura testa a testa
TEE but-welding
Articolo Peso
Item DN /OD SDR A B C D E F H Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64128UZ 160 17,6 292,5 160,0 132,5 425,0 212,5 212,5 105,0 2.580,0 1 2
64130UZ 200 17,6 351,5 200,0 151,5 503,0 251,5 251,5 118,0 4.965,0 1
64132UZ 250 17,6 423,0 250,0 173,0 596,0 298,0 298,0 131,0 8.826,0 1
64134UZ 315 17,6 508,5 315,0 193,5 702,0 351,0 351,0 151,0 15.900,0 1

98
