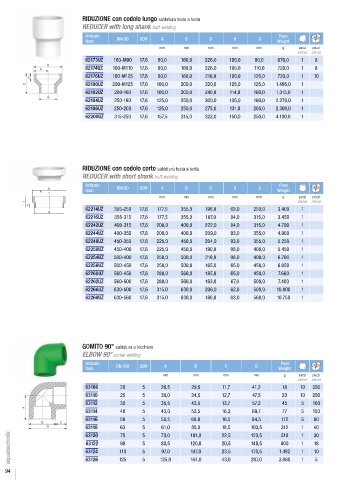

Page 96 - AQUATECHNIK - FUSIO-TECHNIK

RIDUZIONE con codolo lungo saldatura testa a testa
REDUCER with long shank butt-welding
Articolo Peso
Item DN/OD SDR A B D H G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
62173UZ 160-M90 17,6 80,0 160,0 226,0 105,0 90,0 676,0 1 8
62174UZ 160-M110 17,6 80,0 160,0 226,0 105,0 110,0 720,0 1 8
62176UZ 160-M125 17,6 80,0 160,0 216,0 105,0 125,0 733,0 1 10
62180UZ 200-M125 17,6 100,0 200,0 320,0 125,0 125,0 1.495,0 1
62182UZ 200-160 17,6 100,0 200,0 240,0 114,0 160,0 1.315,0 1
62184UZ 250-160 17,6 125,0 250,0 300,0 135,0 160,0 2.270,0 1
RIDUZIONE con codolo corto saldatura testa a testa
62186UZ 250-200 17,6 125,0 250,0 275,0 131,0 200,0 2.300,0 1
REDUCER with short shank butt-welding
62200UZ 315-250 17,6 157,5 315,0 322,0 150,0 250,0 4.100,0 1

RIDUZIONE con codolo corto saldatura testa a testa
REDUCER with short shank butt-welding
Articolo Peso
B DN/OD SDR A B D H G
A Item Weight
mm mm mm mm mm g pezzi pezzi
D pieces pieces
H
62214UZ 355-250 17,6 177,5 355,0 196,0 63,0 250,0 3.400 1
G
62216UZ 355-315 17,6 177,5 355,0 187,0 84,0 315,0 3.450 1
62242UZ 400-315 17,6 200,0 400,0 222,0 84,0 315,0 4.700 1
62244UZ 400-355 17,6 200,0 400,0 209,0 93,0 355,0 4.900 1
62248UZ 450-355 17,6 225,0 450,0 204,0 93,0 355,0 5.250 1
62250UZ 450-400 17,6 225,0 450,0 190,0 98,0 400,0 5.450 1
62254UZ 500-400 17,6 250,0 500,0 210,0 98,0 400,0 6.700 1
62256UZ 500-450 17,6 250,0 500,0 165,0 65,0 450,0 6.050 1
62260UZ 560-450 17,6 280,0 560,0 185,0 65,0 450,0 7.660 1
62262UZ 560-500 17,6 280,0 560,0 163,0 67,0 500,0 7.400 1
62266UZ 630-500 17,6 315,0 630,0 206,0 62,0 500,0 10.800 1
62268UZ 630-560 17,6 315,0 630,0 186,0 63,0 560,0 10.750 1

GOMITO 90° saldatura a bicchiere
ELBOW 90° socket welding
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63108 20 5 26,5 29,5 11,7 41,2 18 10 350
63110 25 5 30,0 34,5 12,7 47,5 23 10 250
63112 32 5 35,5 43,5 13,7 57,2 45 5 100
63114 40 5 43,0 53,5 16,2 69,7 77 5 150
63116 50 5 50,5 68,0 16,5 84,5 172 5 80
63118 63 5 61,0 85,0 18,5 103,5 312 1 40
63120 75 5 73,0 101,0 22,5 123,5 510 1 30
63122 90 5 80,5 120,0 20,5 140,5 800 1 18
63124 110 5 97,0 147,0 23,5 170,5 1.492 1 10
63126 125 5 125,0 164,0 43,0 207,0 2.060 1 5
94
