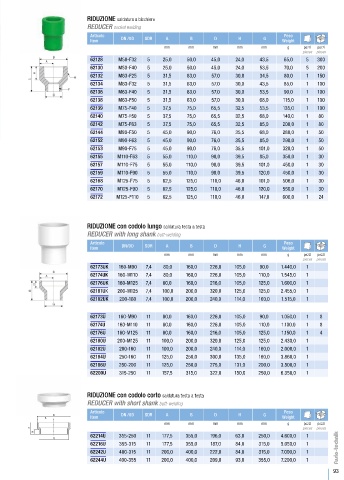

Page 95 - AQUATECHNIK - FUSIO-TECHNIK

RIDUZIONE saldatura a bicchiere
REDUCER socket welding
Articolo Peso
Item DN /OD SDR A B D H G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
62128 M50-F32 5 25,0 50,0 45,0 24,0 43,5 65,0 5 300
62130 M50-F40 5 25,0 50,0 45,0 24,0 53,5 70,0 5 200
62132 M63-F25 5 31,5 63,0 57,0 30,0 34,5 80,0 1 150
62134 M63-F32 5 31,5 63,0 57,0 30,0 43,5 85,0 1 100
62136 M63-F40 5 31,5 63,0 57,0 30,0 53,5 90,0 1 100
62138 M63-F50 5 31,5 63,0 57,0 30,0 68,0 115,0 1 100
62139 M75-F40 5 37,5 75,0 65,5 32,5 53,5 135,0 1 100
62140 M75-F50 5 37,5 75,0 65,5 32,5 68,0 140,0 1 80
62142 M75-F63 5 37,5 75,0 65,5 32,5 85,0 200,0 1 80
62144 M90-F50 5 45,0 90,0 76,0 35,5 68,0 280,0 1 50
62152 M90-F63 5 45,0 90,0 76,0 35,5 85,0 290,0 1 50
62153 M90-F75 5 45,0 90,0 76,0 35,5 101,0 320,0 1 50
62155 M110-F63 5 55,0 110,0 90,0 39,5 85,0 350,0 1 30
62157 M110-F75 5 55,0 110,0 90,0 39,5 101,0 450,0 1 30
62159 M110-F90 5 55,0 110,0 90,0 39,5 120,0 450,0 1 30
62168 M125-F75 5 62,5 125,0 110,0 46,0 101,0 506,0 1 30
62170 M125-F90 5 62,5 125,0 110,0 46,0 120,0 550,0 1 30
62172 M125-F110 5 62,5 125,0 110,0 46,0 147,0 600,0 1 24

RIDUZIONE con codolo lungo saldatura testa a testa
REDUCER with long shank butt-welding
Articolo Peso
Item DN/OD SDR A B D H G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
62173UK 160-M90 7,4 80,0 160,0 226,0 105,0 90,0 1.440,0 1
62174UK 160-M110 7,4 80,0 160,0 226,0 105,0 110,0 1.545,0 1
62176UK 160-M125 7,4 80,0 160,0 216,0 105,0 125,0 1.600,0 1
62181UK 200-M125 7,4 100,0 200,0 320,0 125,0 125,0 2.455,0 1
62182UK 200-160 7,4 100,0 200,0 240,0 114,0 160,0 1.515,0 1

62173U 160-M90 11 80,0 160,0 226,0 105,0 90,0 1.050,0 1 8
62174U 160-M110 11 80,0 160,0 226,0 105,0 110,0 1.100,0 1 8
62176U 160-M125 11 80,0 160,0 216,0 105,0 125,0 1.150,0 1 4
62180U 200-M125 11 100,0 200,0 320,0 125,0 125,0 2.430,0 1
62182U 200-160 11 100,0 200,0 240,0 114,0 160,0 2.000,0 1
62184U 250-160 11 125,0 250,0 300,0 135,0 160,0 3.860,0 1
62186U 250-200 11 125,0 250,0 275,0 131,0 200,0 3.500,0 1
62200U 315-250 11 157,5 315,0 322,0 150,0 250,0 6.350,0 1

RIDUZIONE con codolo corto saldatura testa a testa
REDUCER with short shank butt-welding
Articolo Peso
B DN /OD SDR A B D H G
A Item Weight
mm mm mm mm mm g pezzi pezzi
D pieces pieces
H
62214U 355-250 11 177,5 355,0 196,0 63,0 250,0 4.600,0 1
G
62216U 355-315 11 177,5 355,0 187,0 84,0 315,0 5.050,0 1
62242U 400-315 11 200,0 400,0 222,0 84,0 315,0 7.000,0 1
62244U 400-355 11 200,0 400,0 209,0 93,0 355,0 7.200,0 1
