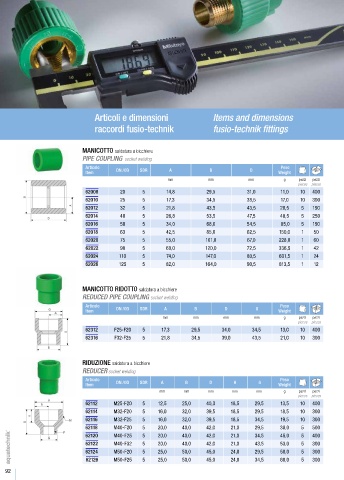

Articoli e dimensioni Items and dimensions

raccordi fusio-technik fusio-technik fittings

MANICOTTO saldatura a bicchiere
PIPE COUPLING socket welding
Articolo Peso

Item DN /OD SDR A B D Weight
mm mm mm g pezzi pezzi
pieces pieces
62008 20 5 14,8 29,5 31,0 11,0 10 400
62010 25 5 17,3 34,5 38,5 17,0 10 300
62012 32 5 21,8 43,5 43,5 28,5 5 150
62014 40 5 26,8 53,5 47,5 48,5 5 250
62016 50 5 34,0 68,0 54,5 85,0 5 150
62018 63 5 42,5 85,0 62,5 150,0 1 50
62020 75 5 55,0 101,0 67,0 228,0 1 60
62022 90 5 60,0 120,0 72,5 336,5 1 42
62024 110 5 74,0 147,0 80,5 601,5 1 24
62026 125 5 82,0 164,0 90,5 813,5 1 12

MANICOTTO RIDOTTO saldatura a bicchiere
REDUCED PIPE COUPLING socket welding
Articolo Peso
Item DN /OD SDR A B D G Weight
mm mm mm mm g pezzi pezzi
pieces pieces
62312 F25-F20 5 17,3 29,5 34,0 34,5 13,0 10 400
62316 F32-F25 5 21,8 34,5 39,0 43,5 21,0 10 300

RIDUZIONE saldatura a bicchiere
REDUCER socket welding
Articolo Peso
Item DN /OD SDR A B D H G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
62112 M25-F20 5 12,5 25,0 40,3 18,5 29,5 13,5 10 400
62114 M32-F20 5 16,0 32,0 39,5 18,5 29,5 18,5 10 300
62116 M32-F25 5 16,0 32,0 39,5 18,5 34,5 19,5 10 300
62118 M40-F20 5 20,0 40,0 42,0 21,0 29,5 38,0 5 500
62120 M40-F25 5 20,0 40,0 42,0 21,0 34,5 45,0 5 400
62122 M40-F32 5 20,0 40,0 42,0 21,0 43,5 53,0 5 300
62124 M50-F20 5 25,0 50,0 45,0 24,0 29,5 50,0 5 300
62126 M50-F25 5 25,0 50,0 45,0 24,0 34,5 60,0 5 300
