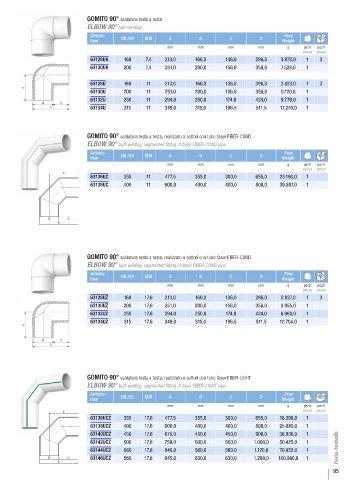

GOMITO 90° saldatura testa a testa
ELBOW 90° butt-welding
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63128UK 160 7,4 213,0 160,0 136,0 296,0 3.970,0 1 3
63130UK 200 7,4 251,0 200,0 156,0 356,0 7.528,0 1

63128U 160 11 213,0 160,0 136,0 296,0 2.823,0 1 3

63130U 200 11 251,0 200,0 106,0 356,0 5.120,0 1
63132U 250 11 294,0 250,0 174,0 424,0 9.770,0 1
63134U 315 11 349,0 315,0 196,5 511,5 17.270,0 1

GOMITO 90° saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND
ELBOW 90° butt-welding, segmented fitting of faser FIBER-COND pipe
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
A
63136UC 355 11 477,5 355,0 300,0 655,0 25.190,0 1
63138UC 400 11 600,0 400,0 400,0 800,0 39.897,0 1

B C
D

GOMITO 90° saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND
ELBOW 90° butt-welding, segmented fitting of faser FIBER-COND pipe
Articolo Peso

Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63128UZ 160 17,6 213,0 160,0 136,0 296,0 2.027,0 1 3
63130UZ 200 17,6 251,0 200,0 156,0 356,0 3.955,0 1
63132UZ 250 17,6 294,0 250,0 174,0 424,0 6.960,0 1
63134UZ 315 17,6 349,0 315,0 196,5 511,5 12.704,0 1

GOMITO 90° saldatura testa a testa, realizzato a settori con tubo faser FIBER-LIGHT
ELBOW 90° butt-welding, segmented fitting of faser FIBER-LIGHT pipe
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
A
63136UCZ 355 17,6 477,5 355,0 300,0 655,0 16.390,0 1
63138UCZ 400 17,6 600,0 400,0 400,0 800,0 25.880,0 1
63140UCZ 450 17,6 675,0 450,0 450,0 900,0 36.936,0 1
63142UCZ 500 17,6 750,0 500,0 500,0 1.000,0 50.425,0 1
63144UCZ 560 17,6 840,0 560,0 560,0 1.120,0 70.852,0 1
B C 63146UCZ 560 17,6 945,0 630,0 630,0 1.260,0 100.980,0 1
D
