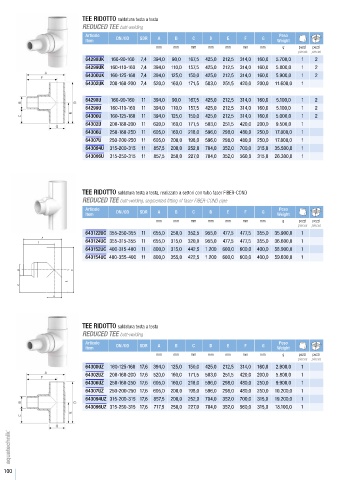

Page 102 - AQUATECHNIK - FUSIO-TECHNIK

TEE RIDOTTO saldatura testa a testa
REDUCED TEE butt-welding
Articolo Peso
Item DN /OD SDR A B C D E F G Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64298UK 160-90-160 7,4 394,0 90,0 167,5 425,0 212,5 314,0 160,0 5.700,0 1 2
64299UK 160-110-160 7,4 394,0 110,0 157,5 425,0 212,5 314,0 160,0 5.800,0 1 2
64300UK 160-125-160 7,4 394,0 125,0 150,0 425,0 212,5 314,0 160,0 5.900,0 1 2
64302UK 200-160-200 7,4 520,0 160,0 171,5 503,0 251,5 420,0 200,0 11.600,0 1

64298U 160-90-160 11 394,0 90,0 167,5 425,0 212,5 314,0 160,0 5.100,0 1 2
64299U 160-110-160 11 394,0 110,0 157,5 425,0 212,5 314,0 160,0 5.100,0 1 2
64300U 160-125-160 11 394,0 125,0 150,0 425,0 212,5 314,0 160,0 5.000,0 1 2
64302U 200-160-200 11 620,0 160,0 171,5 503,0 251,5 420,0 200,0 9.500,0 1
64306U 250-160-250 11 605,0 160,0 218,0 596,0 298,0 480,0 250,0 17.800,0 1
64307U 250-200-250 11 605,0 200,0 198,0 596,0 298,0 480,0 250,0 17.800,0 1
643094U 315-200-315 11 857,5 200,0 252,0 704,0 352,0 700,0 315,0 35.500,0 1
643096U 315-250-315 11 857,5 250,0 227,0 704,0 352,0 560,0 315,0 26.300,0 1

TEE RIDOTTO saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND
REDUCED TEE butt-welding, segmented fitting of faser FIBER-COND pipe
Articolo Peso
Item DN /OD SDR A B C D E F G Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
643122UC 355-250-355 11 655,0 250,0 352,5 955,0 477,5 477,5 355,0 35.900,0 1
A
F 643124UC 355-315-355 11 655,0 315,0 320,0 955,0 477,5 477,5 355,0 36.600,0 1
643152UC 400-315-400 11 800,0 315,0 442,5 1.200 600,0 600,0 400,0 58.900,0 1
643154UC 400-355-400 11 800,0 355,0 422,5 1.200 600,0 600,0 400,0 59.600,0 1

B D

E
C
G

TEE RIDOTTO saldatura testa a testa
REDUCED TEE butt-welding
Articolo Peso
Item DN /OD SDR A B C D E F G Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64300UZ 160-125-160 17,6 394,0 125,0 150,0 425,0 212,5 314,0 160,0 2.900,0 1
64302UZ 200-160-200 17,6 520,0 160,0 171,5 503,0 251,5 420,0 200,0 5.800,0 1
64306UZ 250-160-250 17,6 605,0 160,0 218,0 596,0 298,0 480,0 250,0 9.900,0 1
64307UZ 250-200-250 17,6 605,0 200,0 198,0 596,0 298,0 480,0 250,0 10.200,0 1
643094UZ 315-200-315 17,6 857,5 200,0 252,0 704,0 352,0 700,0 315,0 19.200,0 1
643096UZ 315-250-315 17,6 717,5 250,0 227,0 704,0 352,0 560,0 315,0 18.100,0 1
