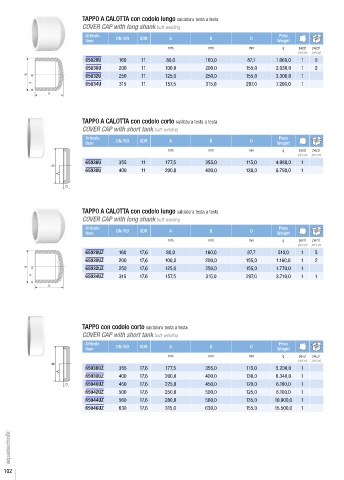

TAPPO A CALOTTA con codolo lungo saldatura testa a testa
COVER CAP with long shank butt-welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
65028U 160 11 80,0 160,0 87,7 1.060,0 1 5
65030U 200 11 100,0 200,0 155,0 2.030,0 1 2
65032U 250 11 125,0 250,0 155,0 3.300,0 1
65034U 315 11 157,5 315,0 297,0 7.200,0 1

TAPPO A CALOTTA con codolo corto saldatura testa a testa
COVER CAP with short tank butt-welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
65036U 355 11 177,5 355,0 115,0 4.980,0 1
B
65038U 400 11 200,0 400,0 130,0 6.790,0 1
A
D

TAPPO A CALOTTA con codolo lungo saldatura testa a testa

COVER CAP with long shank butt-welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
65028UZ 160 17,6 80,0 160,0 87,7 510,0 1 5
65030UZ 200 17,6 100,0 200,0 155,0 1.160,0 1 2
65032UZ 250 17,6 125,0 250,0 155,0 1.770,0 1
65034UZ 315 17,6 157,5 315,0 297,0 3.710,0 1 1

TAPPO con codolo corto saldatura testa a testa
COVER CAP with short tank butt-welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
B
65036UZ 355 17,6 177,5 355,0 115,0 5.200,0 1
A
65038UZ 400 17,6 200,0 400,0 130,0 6.340,0 1
D 65040UZ 450 17,6 225,0 450,0 120,0 6.190,0 1
65042UZ 500 17,6 250,0 500,0 125,0 8.100,0 1
65044UZ 560 17,6 280,0 560,0 135,0 10.900,0 1
65046UZ 630 17,6 315,0 630,0 155,0 15.500,0 1
