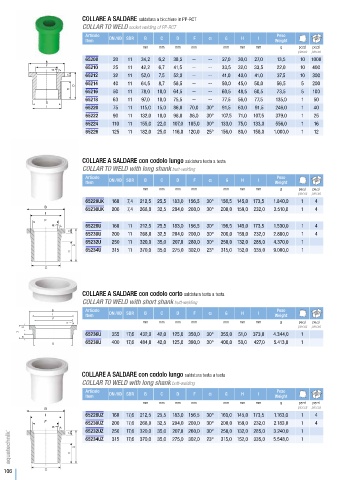

COLLARE A SALDARE saldatura a bicchiere in PP-RCT
COLLAR TO WELD socket welding of PP-RCT
Articolo Peso
Item DN /OD SDR B C D F α G H I Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
65208 20 11 34,2 6,2 38,5 -- -- 27,0 30,0 27,0 13,5 10 1000
B
F 65210 25 11 42,2 6,7 41,5 -- -- 33,5 32,0 33,5 22,0 10 400
α
C 65212 32 11 52,0 7,5 52,0 -- -- 41,0 40,0 41,0 37,5 10 300
65214 40 11 64,5 8,7 58,5 -- -- 50,0 45,0 50,0 56,5 5 200
D
65216 50 11 78,0 10,0 64,5 -- -- 60,5 48,5 60,5 73,5 5 100
H
65218 63 11 97,0 10,0 75,5 -- -- 77,5 56,0 77,5 135,0 1 50
G
I 65220 75 11 115,0 15,0 86,0 70,0 30° 91,5 63,0 91,5 246,0 1 40
65222 90 11 132,0 18,0 98,0 86,0 30° 107,5 71,0 107,5 379,0 1 25
65224 110 11 155,0 22,0 107,0 105,0 30° 133,0 75,0 133,0 556,0 1 16
65226 125 11 182,0 25,0 116,0 120,0 25° 156,0 80,0 156,0 1.000,0 1 12

COLLARE A SALDARE con codolo lungo saldatura testa a testa
COLLAR TO WELD with long shank butt-welding
Articolo Peso
Item DN /OD SDR B C D F α G H I Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
65228UK 160 7,4 212,5 25,5 183,0 156,5 30° 156,5 145,0 173,5 1.840,0 1 4
B 65230UK 200 7,4 268,0 32,5 204,0 200,0 30° 200,0 159,0 232,0 3.510,0 1 4
I
F
α 65228U 160 11 212,5 25,5 183,0 156,5 30° 156,5 145,0 173,5 1.530,0 1 4

65230U 200 11 268,0 32,5 204,0 200,0 30° 200,0 159,0 232,0 2.800,0 1 4
65232U 250 11 320,0 35,0 207,0 260,0 30° 250,0 132,0 285,0 4.370,0 1
65234U 315 11 370,0 35,0 275,0 302,0 23° 315,0 152,0 335,0 9.000,0 1

COLLARE A SALDARE con codolo corto saldatura testa a testa

COLLAR TO WELD with short shank butt-welding
B Articolo Peso
I Item DN /OD SDR B C D F α G H I Weight
F
α mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
C
D
65236U 355 17,6 432,0 42,0 125,0 350,0 30° 355,0 51,0 373,0 4.344,0 1
H
G 65238U 400 17,6 484,0 42,0 125,0 390,0 30° 400,0 50,0 427,0 5.413,0 1

COLLARE A SALDARE con codolo lungo saldatura testa a testa
COLLAR TO WELD with long shank butt-welding
Articolo Peso
Item DN /OD SDR B C D F α G H I Weight

mm mm mm mm mm mm mm g pezzi pezzi
B pieces pieces
I 65228UZ 160 17,6 212,5 25,5 183,0 156,5 30° 160,0 145,0 173,5 1.163,0 1 4
F 65230UZ 200 17,6 268,0 32,5 204,0 200,0 30° 200,0 159,0 232,0 2.183,0 1 4
α
65232UZ 250 17,6 320,0 35,0 207,0 260,0 30° 250,0 132,0 285,0 3.240,0 1
65234UZ 315 17,6 370,0 35,0 275,0 302,0 23° 315,0 152,0 335,0 5.548,0 1
