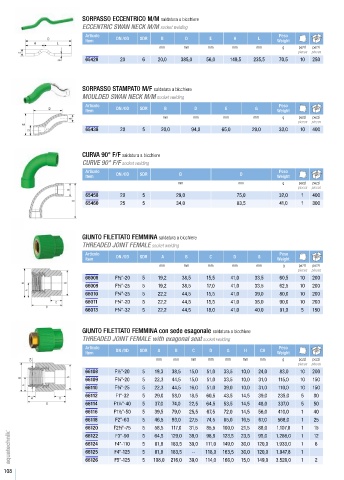

Page 110 - AQUATECHNIK - FUSIO-TECHNIK

SORPASSO ECCENTRICO M/M saldatura a bicchiere
ECCENTRIC SWAN NECK M/M socket welding
Articolo Peso
Item DN /OD SDR B D E H L Weight

mm mm mm mm mm g pezzi pezzi
pieces pieces
65428 20 6 20,0 385,0 56,0 149,5 235,5 70,5 10 250

SORPASSO STAMPATO M/F saldatura a bicchiere

MOULDED SWAN NECK M/M socket welding
Articolo Peso
Item DN /OD SDR B D E G Weight

mm mm mm mm g pezzi pezzi
pieces pieces
65438 20 5 20,0 94,0 65,0 29,0 33,0 10 400

CURVA 90° F/F saldatura a bicchiere
CURVE 90° F/F socket welding
Articolo Peso
Item DN /OD SDR B D Weight

mm mm g pezzi pezzi
pieces pieces
65458 20 5 29,0 75,0 32,0 1 400
65460 25 5 34,0 83,5 41,0 1 300

GIUNTO FILETTATO FEMMINA saldatura a bicchiere
THREADED JOINT FEMALE socket welding
Articolo Peso

Item DN /OD SDR A B C D G Weight

mm mm mm mm mm g pezzi pezzi
pieces pieces
66008 F½”-20 5 19,2 38,5 15,5 41,0 33,5 60,5 10 200
66009 F½”-25 5 19,2 38,5 17,0 41,0 33,5 62,5 10 200
66010 F¾”-25 5 22,2 44,5 15,5 41,0 39,0 80,0 10 200
66011 F¾”-20 5 22,2 44,5 15,5 41,0 35,0 90,0 10 200
66013 F¾”-32 5 22,2 44,5 18,0 41,0 40,0 91,0 5 150

GIUNTO FILETTATO FEMMINA con sede esagonale saldatura a bicchiere
THREADED JOINT FEMALE with exagonal seat socket welding
Articolo Peso
Item DN /OD SDR A B C D G H CH Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
66108 F½”-20 5 19,3 38,5 15,0 51,0 33,5 10,0 24,0 83,0 10 200
66109 F¾”-20 5 22,3 44,5 15,0 51,0 33,5 10,0 31,0 115,0 10 150
66110 F¾”-25 5 22,3 44,5 16,0 51,0 39,0 10,0 31,0 110,0 10 150
66112 F1”-32 5 29,0 58,0 18,5 60,5 43,5 14,5 39,0 235,0 5 80
66114 F1¼”-40 5 37,0 74,0 22,5 64,5 53,5 14,5 48,0 337,0 5 50
66116 F1½”-50 5 39,5 79,0 25,5 67,5 72,0 14,5 56,0 410,0 1 40
66118 F2”-63 5 46,5 93,0 27,5 74,5 85,0 16,5 67,0 568,0 1 25
66120 F2½”-75 5 58,5 117,0 31,5 85,5 100,0 21,5 88,0 1.107,0 1 15
66122 F3”-90 5 64,5 129,0 39,0 98,5 123,5 23,5 95,0 1.286,0 1 12
66124 F4”-110 5 81,8 163,5 39,0 111,0 149,0 30,0 120,0 1.933,0 1 6
66125 F4”-125 5 81,8 163,5 -- 116,0 163,5 30,0 120,0 1.947,8 1
66126 F5”-125 5 108,0 216,0 39,0 114,0 166,0 15,0 149,0 3.526,0 1 2
108
