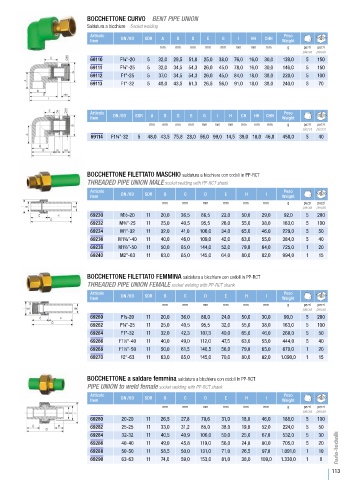

Page 115 - AQUATECHNIK - FUSIO-TECHNIK

BOCCHETTONE CURVO BENT PIPE UNION
Saldatura a bicchiere Socket welding
Articolo Peso
Item DN /OD SDR A B D E G I HH CHH Weight

mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69110 F¾”-20 5 32,0 29,5 51,8 25,0 38,0 76,0 16,0 30,0 139,0 5 150
69111 F¾”-25 5 32,0 34,5 54,3 26,0 45,0 78,0 16,0 30,0 146,0 5 150
69112 F1”-25 5 37,0 34,5 54,3 26,0 45,0 84,0 18,0 38,0 220,0 5 100
69113 F1”-32 5 48,0 43,5 61,3 26,5 56,0 91,0 18,0 38,0 240,0 5 70

Articolo Peso
Item DN /OD SDR A B D E G I H CH HH CHH Weight
mm mm mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69114 F1¼”-32 5 48,0 43,5 75,8 28,0 56,0 99,0 14,5 39,0 18,0 46,0 450,0 5 40

BOCCHETTONE FILETTATO MASCHIO saldatura a bicchiere con codoli in PP-RCT
THREADED PIPE UNION MALE socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR B C D E H I Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69230 M½-20 11 20,0 36,5 86,5 22,0 50,0 29,0 92,0 5 200
69232 M¾”-25 11 25,0 40,5 95,5 26,0 55,0 38,0 163,0 5 100
69234 M1”-32 11 32,0 41,0 106,0 34,0 65,0 46,0 229,0 5 50
69236 M1¼”-40 11 40,0 46,0 109,0 42,0 63,0 55,0 384,0 5 40
69238 M1½”-50 11 50,0 65,0 144,0 52,0 79,0 64,0 725,0 1 20
69240 M2”-63 11 63,0 65,0 145,0 64,0 80,0 82,0 994,0 1 15

BOCCHETTONE FILETTATO FEMMINA saldatura a bicchiere con codoli in PP-RCT
THREADED PIPE UNION FEMALE socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR B C D E H I Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69260 F½-20 11 20,0 36,0 86,0 24,0 50,0 30,0 90,0 5 200
69262 F¾”-25 11 25,0 40,5 95,5 32,0 55,0 38,0 163,0 5 100
69264 F1”-32 11 32,0 42,3 107,3 40,0 65,0 46,0 260,0 5 50
69266 F1¼”-40 11 40,0 49,0 112,0 47,5 63,0 55,0 444,0 5 40
69268 F1½”-50 11 50,0 61,5 140,5 56,0 79,0 65,0 670,0 1 20
69270 F2”-63 11 63,0 65,0 145,0 70,0 80,0 82,0 1.090,0 1 15

BOCCHETTONE a saldare femmina saldatura a bicchiere con codoli in PP-RCT
PIPE UNION to weld female socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR B C D E H I Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69280 20-20 11 26,5 27,8 79,6 31,0 18,8 46,0 188,0 5 100
69282 25-25 11 33,0 31,2 85,0 38,0 19,8 52,0 224,0 5 50
69284 32-32 11 40,5 40,9 106,0 50,0 25,0 67,0 532,0 5 30
69286 40-40 11 49,0 45,8 119,0 56,0 24,8 80,0 705,0 5 20
69288 50-50 11 58,5 50,0 131,0 71,0 26,5 97,0 1.091,0 1 10
69290 63-63 11 74,0 59,0 153,0 81,0 38,0 109,0 1.330,0 1 8
