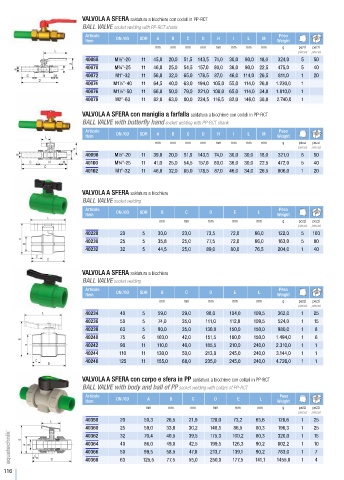

Page 118 - AQUATECHNIK - FUSIO-TECHNIK

VALVOLA A SFERA saldatura a bicchiere con codoli in PP-RCT
BALL VALVE socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR A B C D H I L M Weight

mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40068 M½”-20 11 45,0 20,0 51,5 143,5 74,0 30,0 90,0 18,0 324,0 5 50
40070 M¾”-25 11 46,0 25,0 54,5 157,0 80,0 36,0 90,0 22,5 475,0 5 40
40072 M1”-32 11 56,0 32,0 65,0 178,5 87,0 46,0 114,0 26,5 811,0 1 20
40074 M1¼”-40 11 64,5 40,0 63,0 194,0 105,0 55,0 114,0 26,0 1.230,0 1
40076 M1½”-50 11 66,0 50,0 79,0 221,0 108,0 65,0 114,0 34,0 1.810,0 1
40078 M2”-63 11 82,0 63,0 80,0 234,5 116,5 82,0 146,0 38,0 2.740,0 1

VALVOLA A SFERA con maniglia a farfalla saldatura a bicchiere con codoli in PP-RCT
BALL VALVE with butterfly hand socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR A B C D H I L M Weight

mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40098 M½”-20 11 39,0 20,0 51,5 143,5 74,0 30,0 30,0 18,0 321,0 5 50
40100 M¾”-25 11 41,0 25,0 54,5 157,0 80,0 36,0 30,0 22,5 472,0 5 40
40102 M1”-32 11 46,0 32,0 65,0 178,5 87,0 46,0 34,0 26,5 806,0 1 20

VALVOLA A SFERA saldatura a bicchiere
BALL VALVE socket welding
Articolo Peso
Item DN /OD SDR B C D E L Weight

mm mm mm mm mm g pezzi pezzi
pieces pieces
40228 20 5 30,0 23,0 73,5 72,0 66,0 122,0 5 100
40230 25 5 35,8 25,0 77,5 72,0 66,0 163,0 5 80
40232 32 5 44,5 25,0 89,0 80,0 76,5 204,0 1 40

VALVOLA A SFERA saldatura a bicchiere
BALL VALVE socket welding
Articolo Peso
Item DN /OD SDR B C D E L Weight

mm mm mm mm mm g pezzi pezzi
pieces pieces
40234 40 5 59,0 29,0 98,0 104,0 109,5 362,0 1 25
40236 50 5 74,0 35,0 111,0 112,0 109,5 524,0 1 15
40238 63 5 90,0 35,0 130,0 150,0 150,0 980,0 1 8
40240 75 6 103,0 42,0 151,5 180,0 150,0 1.494,0 1 6
40242 90 11 110,0 46,0 185,5 210,0 240,0 2.310,0 1 1
40244 110 11 130,0 50,0 213,0 245,0 240,0 3.144,0 1 1
40246 125 11 155,0 68,0 235,0 245,0 240,0 4.726,0 1 1

VALVOLA A SFERA con corpo e sfera in PP saldatura a bicchiere con collari in PP-RCT
BALL VALVE with body and ball of PP socket welding with collars of PP-RCT
Articolo Peso

Item DN /OD A B C D E L Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40358 20 50,3 26,5 21,9 128,0 73,2 65,6 126,6 1 25
40360 25 59,0 33,0 30,2 148,5 86,5 80,3 196,3 1 25
40362 32 70,4 40,5 39,5 175,3 100,2 80,3 320,0 1 15
40364 40 86,0 49,0 42,5 199,5 126,3 90,2 602,2 1 10
40366 50 99,5 58,5 47,0 213,7 139,1 90,2 783,0 1 7
40368 63 125,5 77,5 55,0 250,0 177,5 141,1 1455,0 1 4
