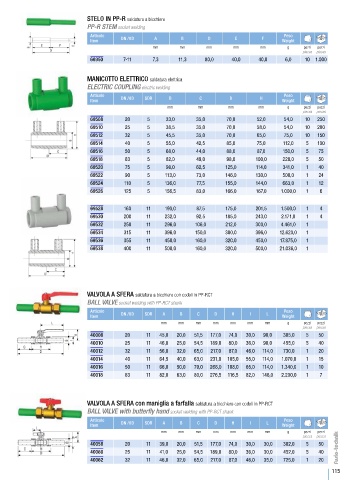

STELO IN PP-R saldatura a bicchiere
PP-R STEM socket welding
Articolo Peso
Item DN /OD A B D E F Weight

mm mm mm mm mm g pezzi pezzi
pieces pieces
69350 7-11 7,3 11,3 80,0 40,0 40,0 6,0 10 1.000

MANICOTTO ELETTRICO saldatura elettrica
ELECTRIC COUPLING electric welding
Articolo Peso
Item DN /OD SDR B C D H Weight

mm mm mm mm g pezzi pezzi
pieces pieces
69508 20 5 33,0 35,0 70,0 52,0 54,0 10 250
69510 25 5 38,5 35,0 70,0 58,0 54,0 10 200
69512 32 5 45,5 35,0 70,0 65,0 75,0 10 150
69514 40 5 55,0 42,5 85,0 75,0 112,0 5 100
69516 50 5 68,0 44,0 88,0 87,0 150,0 5 75
69518 63 5 82,0 49,0 98,0 100,0 220,0 5 50
69520 75 5 98,0 62,5 125,0 114,0 341,0 1 40
69522 90 5 113,0 73,0 146,0 130,0 500,0 1 24
69524 110 5 136,0 77,5 155,0 144,0 663,0 1 12
69526 125 5 156,5 83,0 166,0 167,0 1.000,0 1 6

69528 160 11 190,0 87,5 175,0 201,5 1.500,0 1 4
69530 200 11 232,0 92,5 185,0 243,0 2.171,0 1 4
69532 250 11 296,0 106,0 212,0 300,0 4.461,0 1
69534 315 11 396,0 150,0 300,0 396,0 12.620,0 1
69536 355 11 450,0 160,0 320,0 450,0 17.875,0 1
69538 400 11 500,0 160,0 320,0 500,0 21.036,0 1

VALVOLA A SFERA saldatura a bicchiere con codoli in PP-RCT
BALL VALVE socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR A B C D H I L Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40008 20 11 45,0 20,0 51,5 177,0 74,0 30,0 90,0 305,0 5 50
40010 25 11 46,0 25,0 54,5 189,0 80,0 36,0 90,0 455,0 5 40
40012 32 11 56,0 32,0 65,0 217,0 87,0 46,0 114,0 730,0 1 20
40014 40 11 64,5 40,0 63,0 231,0 105,0 55,0 114,0 1.070,0 1 15
40016 50 11 66,0 50,0 79,0 266,0 108,0 65,0 114,0 1.340,0 1 10
40018 63 11 82,0 63,0 80,0 276,5 116,5 82,0 146,0 2.200,0 1 7

VALVOLA A SFERA con maniglia a farfalla saldatura a bicchiere con codoli in PP-RCT
BALL VALVE with butterfly hand socket welding with PP-RCT shank
Articolo Peso
Item DN /OD SDR A B C D H I L Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40058 20 11 39,0 20,0 51,5 177,0 74,0 30,0 30,0 302,0 5 50
40060 25 11 41,0 25,0 54,5 189,0 80,0 36,0 30,0 452,0 5 40
40062 32 11 46,0 32,0 65,0 217,0 87,0 46,0 35,0 725,0 1 20
