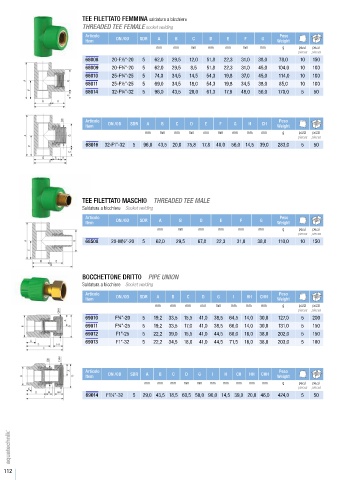

Page 114 - AQUATECHNIK - FUSIO-TECHNIK

TEE FILETTATO FEMMINA saldatura a bicchiere
THREADED TEE FEMALE socket welding
Articolo Peso
Item DN /OD SDR A B C D E F G Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
68008 20-F½”-20 5 62,0 29,5 12,0 51,8 22,3 31,0 38,0 78,0 10 150
68009 20-F¾”-20 5 62,0 29,5 8,5 51,8 22,3 31,0 45,0 104,0 10 100
68010 25-F¾”-25 5 74,0 34,5 14,5 54,3 19,8 37,0 45,0 114,0 10 100
68011 25-F½”-25 5 69,0 34,5 18,0 54,3 19,8 34,5 38,0 85,0 10 100
68014 32-F¾”-32 5 96,0 43,5 20,0 61,3 17,8 48,0 56,0 170,0 5 50

Articolo Peso
Item DN /OD SDR A B C D E F G H CH Weight

mm mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
68016 32-F1”-32 5 96,0 43,5 20,0 75,8 17,8 48,0 56,0 14,5 39,0 283,0 5 50

E

TEE FILETTATO MASCHIO THREADED TEE MALE
Saldatura a bicchiere Socket welding
Articolo Peso

Item DN /OD SDR A B D E F G Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
68508 20-M½”-20 5 62,0 29,5 67,8 22,3 31,0 38,0 110,0 10 150

BOCCHETTONE DRITTO PIPE UNION
Saldatura a bicchiere Socket welding
Articolo Peso
Item DN /OD SDR A B C D G I HH CHH Weight

mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69010 F¾”-20 5 19,2 33,5 15,5 41,0 38,5 64,5 14,0 30,0 127,0 5 200
69011 F¾”-25 5 19,2 33,5 17,0 41,0 38,5 66,0 14,0 30,0 131,0 5 150
69012 F1”-25 5 22,2 39,0 15,5 41,0 44,5 68,0 16,0 38,0 202,0 5 150
69013 F1”-32 5 22,2 34,5 18,0 41,0 44,5 71,5 16,0 38,0 203,0 5 100

Articolo Peso
Item DN /OD SDR A B C D G I H CH HH CHH Weight

mm mm mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
69014 F1¼”-32 5 29,0 43,5 18,5 60,5 58,0 90,0 14,5 39,0 20,0 46,0 424,0 5 50
