Page 119 - AQUATECHNIK - FUSIO-TECHNIK

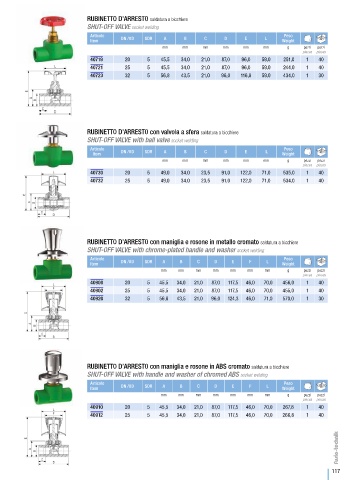

P. 119
RUBINETTO D’ARRESTO saldatura a bicchiere
SHUT-OFF VALVE socket welding
Articolo Peso
Item DN /OD SDR A B C D E L Weight
mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40719 20 5 45,5 34,0 21,0 87,0 96,0 59,0 251,0 1 40
40721 25 5 45,5 34,0 21,0 87,0 96,0 59,0 244,0 1 40
40723 32 5 56,8 43,5 21,0 96,0 116,8 59,0 434,0 1 30
RUBINETTO D’ARRESTO con valvola a sfera saldatura a bicchiere
SHUT-OFF VALVE with ball valve socket welding
Articolo Peso
Item DN /OD SDR A B C D E L Weight
mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40730 20 5 49,0 34,0 23,5 91,0 122,0 71,0 535,0 1 40
40732 25 5 49,0 34,0 23,5 91,0 122,0 71,0 534,0 1 40
RUBINETTO D’ARRESTO con maniglia e rosone in metallo cromato saldatura a bicchiere
SHUT-OFF VALVE with chrome-plated handle and washer socket welding
Articolo Peso
Item DN /OD SDR A B C D E F L Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40900 20 5 45,5 34,0 21,0 87,0 117,5 46,0 70,0 456,0 1 40
40902 25 5 45,5 34,0 21,0 87,0 117,5 46,0 70,0 455,0 1 40
40920 32 5 56,8 43,5 21,0 96,0 124,3 46,0 71,0 570,0 1 30
RUBINETTO D’ARRESTO con maniglia e rosone in ABS cromato saldatura a bicchiere
SHUT-OFF VALVE with handle and washer of chromed ABS socket welding
Articolo Peso
Item DN /OD SDR A B C D E F L Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40910 20 5 45,5 34,0 21,0 87,0 117,5 46,0 70,0 267,8 1 40
40912 25 5 45,5 34,0 21,0 87,0 117,5 46,0 70,0 266,8 1 40
117
