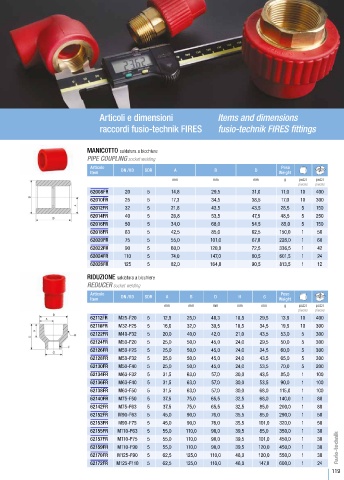

Articoli e dimensioni Items and dimensions

raccordi fusio-technik FIRES fusio-technik FIRES fittings

MANICOTTO saldatura a bicchiere
PIPE COUPLING socket welding
Articolo Peso

Item DN /OD SDR A B D Weight
mm mm mm g pezzi pezzi
pieces pieces
62008FR 20 5 14,8 29,5 31,0 11,0 10 400
62010FR 25 5 17,3 34,5 38,5 17,0 10 300
62012FR 32 5 21,8 43,5 43,5 28,5 5 150
62014FR 40 5 26,8 53,5 47,5 48,5 5 250
62016FR 50 5 34,0 68,0 54,5 85,0 5 150
62018FR 63 5 42,5 85,0 62,5 150,0 1 50
62020FR 75 5 55,0 101,0 67,0 228,0 1 60
62022FR 90 5 60,0 120,0 72,5 336,5 1 42
62024FR 110 5 74,0 147,0 80,5 601,5 1 24
62026FR 125 5 82,0 164,0 90,5 813,5 1 12

RIDUZIONE saldatura a bicchiere
REDUCER socket welding
Articolo Peso
Item DN /OD SDR A B D H G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
62112FR M25-F20 5 12,5 25,0 40,3 18,5 29,5 13,5 10 400
62116FR M32-F25 5 16,0 32,0 39,5 18,5 34,5 19,5 10 300
62122FR M40-F32 5 20,0 40,0 42,0 21,0 43,5 53,0 5 300
62124FR M50-F20 5 25,0 50,0 45,0 24,0 29,5 50,0 5 300
62126FR M50-F25 5 25,0 50,0 45,0 24,0 34,5 60,0 5 300
62128FR M50-F32 5 25,0 50,0 45,0 24,0 43,5 65,0 5 300
62130FR M50-F40 5 25,0 50,0 45,0 24,0 53,5 70,0 5 200
62134FR M63-F32 5 31,5 63,0 57,0 30,0 43,5 85,0 1 100
62136FR M63-F40 5 31,5 63,0 57,0 30,0 53,5 90,0 1 100
62138FR M63-F50 5 31,5 63,0 57,0 30,0 68,0 115,0 1 100
62140FR M75-F50 5 37,5 75,0 65,5 32,5 68,0 140,0 1 80
62142FR M75-F63 5 37,5 75,0 65,5 32,5 85,0 200,0 1 80
62152FR M90-F63 5 45,0 90,0 76,0 35,5 85,0 290,0 1 50
62153FR M90-F75 5 45,0 90,0 76,0 35,5 101,0 320,0 1 50
62155FR M110-F63 5 55,0 110,0 90,0 39,5 85,0 350,0 1 30
62157FR M110-F75 5 55,0 110,0 90,0 39,5 101,0 450,0 1 30
62159FR M110-F90 5 55,0 110,0 90,0 39,5 120,0 450,0 1 30
62170FR M125-F90 5 62,5 125,0 110,0 46,0 120,0 550,0 1 30
62172FR M125-F110 5 62,5 125,0 110,0 46,0 147,0 600,0 1 24
