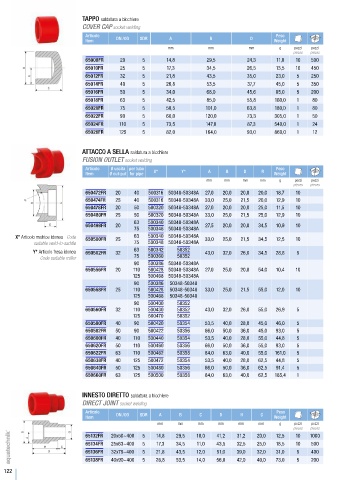

Page 124 - AQUATECHNIK - FUSIO-TECHNIK

TAPPO saldatura a bicchiere
COVER CAP socket welding
Articolo Peso
Item DN /OD SDR A B D Weight

mm mm mm g pezzi pezzi
pieces pieces
65008FR 20 5 14,8 29,5 24,3 11,0 10 500
65010FR 25 5 17,3 34,5 26,5 13,5 10 450
65012FR 32 5 21,8 43,5 35,0 23,0 5 250
65014FR 40 5 26,8 53,5 37,7 45,0 5 350
65016FR 50 5 34,0 68,0 45,6 85,0 5 200
65018FR 63 5 42,5 85,0 55,8 160,0 1 80
65020FR 75 5 50,5 101,0 63,8 180,0 1 80
65022FR 90 5 60,0 120,0 73,3 305,0 1 50
65024FR 110 5 73,5 147,0 87,3 540,0 1 24
65026FR 125 5 82,0 164,0 93,0 860,0 1 12

ATTACCO A SELLA saldatura a bicchiere
FUSION OUTLET socket welding
Articolo Ø uscita per tubo Peso
Item Ø out-put for pipe X* Y* A B D R Weight
mm mm mm mm g pezzi pezzi
pieces pieces
650472FR 20 40 500316 50348-50348A 27,0 20,0 20,0 20,0 18,7 10
650474FR 25 40 500316 50348-50348A 33,0 25,0 21,5 20,0 12,9 10
650478FR 20 50 500320 50348-50348A 27,0 20,0 20,0 25,0 11,5 10
650480FR 25 50 500320 50348-50348A 33,0 25,0 21,5 25,0 12,9 10
63 500340 50348-50348A

650498FR 20 75 500348 50348-50348A 27,5 20,0 20,0 34,5 10,9 10

X* Articolo matrice idonea Code 650500FR 25 63 500340 50348-50348A 33,0 25,0 21,5 34,5 12,5 10
suitable weld-in-saddle 75 500348 50348-50348A
Y* Articolo fresa idonea 650502FR 32 63 500342 50352 43,0 32,0 26,0 34,5 28,8 5
Code suitable miller 75 500360 50352
90 500386 50348-50348A
650556FR 20 110 500428 50348-50348A 27,0 25,0 20,0 54,0 10,4 10
125 500468 50348-50348A
90 500386 50348-50348
650558FR 25 110 500428 50348-50348 33,0 25,0 21,5 55,0 12,0 10
125 500468 50348-50348
90 500400 50352
650560FR 32 110 500430 50352 43,0 32,0 26,0 55,0 26,9 5
125 500470 50352
650580FR 40 90 500420 50354 53,5 40,0 28,0 45,0 46,0 5
650582FR 50 90 500422 50356 66,0 50,0 36,0 45,0 93,0 5
650600FR 40 110 500440 50354 53,5 40,0 28,0 55,0 44,8 5
650620FR 50 110 500460 50356 66,0 50,0 36,0 55,0 93,0 5
650622FR 63 110 500462 50358 84,0 63,0 40,0 55,0 161,0 5
650638FR 40 125 500472 50354 53,5 40,0 28,0 62,5 44,8 5
650640FR 50 125 500480 50356 66,0 50,0 36,0 62,5 91,4 5
650660FR 63 125 500500 50358 84,0 63,0 40,0 62,5 165,4 1

INNESTO DIRETTO saldatura a bicchiere
DIRECT JOINT socket welding
Articolo Peso

Item DN /OD SDR A B C D H G Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
65132FR 20x50~400 5 14,8 29,5 10,0 41,2 31,2 20,0 12,5 10 1000
65134FR 25x63~400 5 17,3 34,5 11,0 43,5 32,5 25,0 18,5 10 500
65136FR 32x75~400 5 21,8 43,5 12,0 51,0 39,0 32,0 31,0 5 400
65138FR 40x90~400 5 26,8 53,5 14,0 56,0 42,0 40,0 73,0 5 200
122
