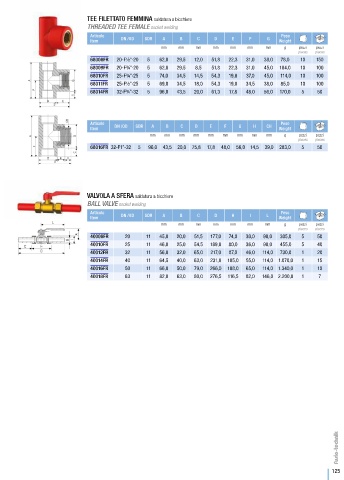

Page 127 - AQUATECHNIK - FUSIO-TECHNIK

TEE FILETTATO FEMMINA saldatura a bicchiere
THREADED TEE FEMALE socket welding
Articolo Peso

Item DN /OD SDR A B C D E F G Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
68008FR 20-F½”-20 5 62,0 29,5 12,0 51,8 22,3 31,0 38,0 78,0 10 150
68009FR 20-F¾”-20 5 62,0 29,5 8,5 51,8 22,3 31,0 45,0 104,0 10 100
68010FR 25-F¾”-25 5 74,0 34,5 14,5 54,3 19,8 37,0 45,0 114,0 10 100
68011FR 25-F½”-25 5 69,0 34,5 18,0 54,3 19,8 34,5 38,0 85,0 10 100
68014FR 32-F¾”-32 5 96,0 43,5 20,0 61,3 17,8 48,0 56,0 170,0 5 50

Articolo Peso
Item DN /OD SDR A B C D E F G H CH Weight

mm mm mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
68016FR 32-F1”-32 5 96,0 43,5 20,0 75,8 17,8 48,0 56,0 14,5 39,0 283,0 5 50
E

VALVOLA A SFERA saldatura a bicchiere
BALL VALVE socket welding
Articolo Peso
Item DN /OD SDR A B C D H I L Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
40008FR 20 11 45,0 20,0 51,5 177,0 74,0 30,0 90,0 305,0 5 50
40010FR 25 11 46,0 25,0 54,5 189,0 80,0 36,0 90,0 455,0 5 40
40012FR 32 11 56,0 32,0 65,0 217,0 87,0 46,0 114,0 730,0 1 20
40014FR 40 11 64,5 40,0 63,0 231,0 105,0 55,0 114,0 1.070,0 1 15
40016FR 50 11 66,0 50,0 79,0 266,0 108,0 65,0 114,0 1.340,0 1 10
40018FR 63 11 82,0 63,0 80,0 276,5 116,5 82,0 146,0 2.200,0 1 7

125
