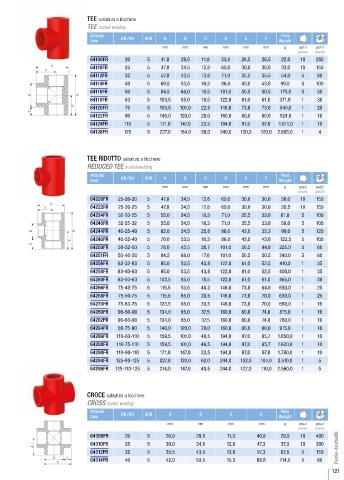

Page 123 - AQUATECHNIK - FUSIO-TECHNIK

TEE saldatura a bicchiere
TEE socket welding
Articolo Peso

Item DN /OD SDR A B C D E F Weight
mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64108FR 20 5 41,0 29,5 11,8 53,0 26,5 26,5 22,0 10 250
64110FR 25 5 47,0 34,5 12,8 60,0 30,0 30,0 33,0 10 150
64112FR 32 5 57,0 43,5 13,8 71,0 35,5 35,5 54,0 5 80
64114FR 40 5 69,5 53,5 16,3 86,0 43,0 43,0 99,0 5 100
64116FR 50 5 84,5 68,0 16,5 101,0 50,5 50,5 175,0 5 50
64118FR 63 5 103,5 85,0 18,5 122,0 61,0 61,0 371,0 1 30
64120FR 75 5 103,5 101,0 22,5 146,0 73,0 73,0 540,0 1 25
64122FR 90 5 140,0 120,0 20,0 160,0 80,0 80,0 924,0 1 16
64124FR 110 5 171,0 147,0 23,5 194,0 97,0 97,0 1.611,0 1 10
64126FR 125 5 227,0 164,0 38,0 240,0 120,0 120,0 2.655,0 1 4

TEE RIDOTTO saldatura a bicchiere
REDUCED TEE socket welding
Articolo Peso
Item DN /OD SDR A B C D E F Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
64220FR 25-20-20 5 47,0 34,5 12,8 60,0 30,0 30,0 38,0 10 150
64222FR 25-20-25 5 47,0 34,5 12,8 60,0 30,0 30,0 35,5 10 150
64234FR 32-20-25 5 55,0 34,5 18,3 71,0 35,5 33,0 61,0 5 100
64240FR 32-25-32 5 55,0 34,5 18,3 71,0 35,5 33,0 58,0 5 100
64244FR 40-25-40 5 62,0 34,5 25,8 86,0 43,0 35,3 99,0 5 120
64246FR 40-32-40 5 70,0 53,5 16,3 86,0 43,0 43,0 122,5 5 100
64250FR 50-32-50 5 78,0 43,5 28,7 101,0 50,5 44,0 225,0 5 60
64251FR 50-40-50 5 84,5 68,0 17,0 101,0 50,5 50,5 240,0 5 60
64256FR 63-32-63 5 95,0 53,5 43,8 122,0 61,0 52,5 410,0 1 35
64258FR 63-40-63 5 95,0 53,5 43,8 122,0 61,0 52,5 400,0 1 35
64260FR 63-50-63 5 103,5 85,0 18,5 122,0 61,0 61,0 465,0 1 30
64266FR 75-40-75 5 115,5 53,5 46,3 146,0 73,0 64,0 630,0 1 25
64268FR 75-50-75 5 115,5 85,0 30,5 146,0 73,0 70,0 630,0 1 25
64270FR 75-63-75 5 123,5 85,0 30,5 146,0 73,0 70,0 680,0 1 16
64280FR 90-50-90 5 134,0 85,0 37,5 160,0 80,0 74,0 815,0 1 16
64282FR 90-63-90 5 134,0 85,0 37,5 160,0 80,0 74,0 780,0 1 16
64284FR 90-75-90 5 140,0 120,0 20,0 160,0 80,0 80,0 915,0 1 16
64286FR 110-63-110 5 159,5 101,0 46,5 194,0 97,0 85,7 1.650,0 1 10
64288FR 110-75-110 5 159,5 101,0 46,5 194,0 97,0 85,7 1.620,0 1 10
64290FR 110-90-110 5 171,0 147,0 23,5 194,0 97,0 97,0 1.780,0 1 10
64294FR 125-90-125 5 227,0 120,0 62,0 244,0 122,0 104,0 2.510,0 1 5
64296FR 125-110-125 5 214,0 147,0 48,5 244,0 122,0 110,0 2.560,0 1 5

CROCE saldatura a bicchiere
CROSS socket welding
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
64308FR 20 5 26,0 29,5 11,3 40,8 29,0 10 400
64310FR 25 5 30,0 34,5 12,8 47,3 37,0 10 300
64312FR 32 5 35,5 43,5 13,8 57,3 67,5 5 150
64314FR 40 5 42,0 53,5 15,3 68,8 114,5 5 80
