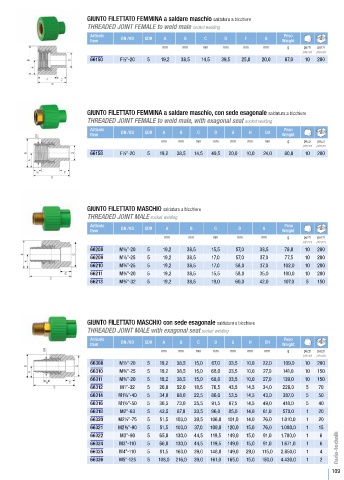

GIUNTO FILETTATO FEMMINA a saldare maschio saldatura a bicchiere
THREADED JOINT FEMALE to weld male socket welding
Articolo Peso
Item DN /OD SDR A B C D F G Weight

mm mm mm mm mm mm g pezzi pezzi
pieces pieces
66150 F½”-20 5 19,2 38,5 14,5 39,5 25,0 20,0 67,0 10 200

GIUNTO FILETTATO FEMMINA a saldare maschio, con sede esagonale saldatura a bicchiere
THREADED JOINT FEMALE to weld male, with exagonal seat socket welding
Articolo Peso
Item DN /OD SDR A B C D G H CH Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
66158 F½”-20 5 19,2 38,5 14,5 49,5 20,0 10,0 24,0 80,0 10 200

GIUNTO FILETTATO MASCHIO saldatura a bicchiere
THREADED JOINT MALE socket welding
Articolo Peso
Item DN /OD SDR A B C D G Weight

mm mm mm mm mm g pezzi pezzi
pieces pieces
66208 M½”-20 5 19,2 38,5 15,5 57,0 33,5 78,0 10 200
66209 M½”-25 5 19,2 38,5 17,0 57,0 37,0 77,5 10 200
66210 M¾”-25 5 19,2 38,5 17,0 58,0 37,0 102,0 10 200
66211 M¾”-20 5 19,2 38,5 15,5 58,0 35,0 100,0 10 200
66213 M¾”-32 5 19,2 38,5 19,0 60,0 42,0 107,0 5 150

GIUNTO FILETTATO MASCHIO con sede esagonale saldatura a bicchiere
THREADED JOINT MALE with exagonal seat socket welding
Articolo Peso
Item DN /OD SDR A B C D G H CH Weight

mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
66308 M½”-20 5 19,2 38,5 15,0 67,0 33,5 10,0 22,0 109,0 10 200
66310 M¾”-25 5 19,2 38,5 15,0 68,0 33,5 10,0 27,0 141,0 10 150
66311 M¾”-20 5 19,2 38,5 15,0 68,0 33,5 10,0 27,0 139,0 10 150
66312 M1”-32 5 26,0 52,0 18,5 76,5 43,5 14,5 34,0 226,0 5 70
66314 M1¼”-40 5 34,0 68,0 22,5 86,0 53,5 14,5 43,0 387,0 5 50
66316 M1½”-50 5 36,5 73,0 25,5 91,5 67,5 14,5 49,0 418,0 5 40
66318 M2”-63 5 43,5 87,0 33,5 96,0 85,0 14,0 61,0 570,0 1 20
66320 M2½”-75 5 51,5 103,0 39,5 106,0 101,0 14,0 76,0 1.010,0 1 20
66321 M2½”-90 5 51,5 103,0 37,0 109,0 120,0 15,0 76,0 1.080,0 1 15
66322 M3”-90 5 65,0 130,0 44,5 119,5 149,0 15,0 91,0 1.780,0 1 6
66324 M3”-110 5 66,0 130,0 44,5 119,5 149,0 15,0 91,0 1.671,0 1 6
66325 M4”-110 5 81,5 163,0 39,0 148,0 149,0 29,0 115,0 2.850,0 1 4
66326 M5”-125 5 108,0 216,0 39,0 161,0 165,0 15,0 150,0 4.430,0 1 2
