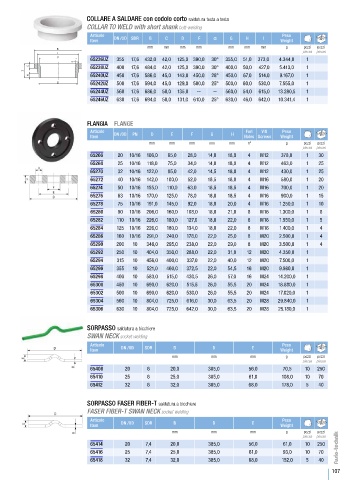

COLLARE A SALDARE con codolo corto saldatura testa a testa
COLLAR TO WELD with short shank butt-welding
Articolo Peso
Item DN /OD SDR B C D F α G H I Weight

B mm mm mm mm mm mm mm g pezzi pezzi
I pieces pieces
F 65236UZ 355 17,6 432,0 42,0 125,0 390,0 30° 355,0 51,0 373,0 4.344,0 1
α
65238UZ 400 17,6 484,0 42,0 125,0 390,0 30° 400,0 50,0 427,0 5.413,0 1
C
D
65240UZ 450 17,6 586,0 45,0 143,0 450,0 28° 450,0 67,0 514,0 9.167,0 1
H
G 65242UZ 500 17,6 594,0 45,0 129,0 500,0 25° 500,0 60,0 530,0 7.555,0 1
65244UZ 560 17,6 686,0 50,0 135,0 -- -- 560,0 54,0 615,0 13.280,5 1
65246UZ 630 17,6 694,0 50,0 131,0 610,0 25° 630,0 46,0 642,0 10.341,4 1

FLANGIA FLANGE
Articolo Fori Viti Peso
Item DN /OD PN D E F G H Holes Screws Weight
mm mm mm mm mm n° g pezzi pezzi
pieces pieces
65266 20 10/16 106,0 65,0 28,0 14,0 18,0 4 M12 378,0 1 30
65268 25 10/16 118,0 75,0 34,0 14,0 18,0 4 M12 463,0 1 25
65270 32 10/16 122,0 85,0 42,0 14,5 18,0 4 M12 430,0 1 25
65272 40 10/16 142,0 100,0 52,0 18,5 18,0 4 M16 580,0 1 20
65274 50 10/16 155,0 110,0 63,0 18,5 18,5 4 M16 700,0 1 20
65276 63 10/16 170,0 125,0 78,0 18,0 18,5 4 M16 900,0 1 15
65278 75 10/16 191,0 145,0 92,0 18,0 20,0 4 M16 1.250,0 1 10
65280 90 10/16 206,0 160,0 108,0 18,0 21,0 8 M16 1.300,0 1 8
65282 110 10/16 226,0 180,0 127,0 18,0 22,0 8 M16 1.550,0 1 5
65284 125 10/16 226,0 180,0 134,0 18,0 22,0 8 M16 1.400,0 1 4
65286 160 10/16 291,0 240,0 178,0 22,0 25,0 8 M20 2.500,0 1 4
65290 200 10 346,0 295,0 238,0 22,0 29,0 8 M20 3.500,0 1 4
65292 250 10 404,0 350,0 288,0 22,0 31,0 12 M20 4.350,0 1
65294 315 10 456,0 400,0 337,0 22,0 40,0 12 M20 7.500,0 1
65296 355 10 521,0 460,0 372,5 22,0 54,5 16 M20 9.980,0 1
65298 400 10 583,0 515,0 430,5 26,0 57,0 16 M24 14.200,0 1
65300 450 10 690,0 620,0 515,5 26,0 55,5 20 M24 18.880,0 1
65302 500 10 690,0 620,0 530,0 26,0 55,5 20 M24 17.020,0 1
65304 560 10 804,0 725,0 616,0 30,0 63,5 20 M28 29.840,0 1
65306 630 10 804,0 725,0 642,0 30,0 63,5 20 M28 25.180,0 1

SORPASSO saldatura a bicchiere
SWAN NECK socket welding
Articolo Peso
Item DN /OD SDR B D E Weight

mm mm mm g pezzi pezzi
pieces pieces
65408 20 6 20,0 385,0 56,0 70,5 10 250
65410 25 6 25,0 385,0 61,0 108,0 10 70
65412 32 6 32,0 385,0 68,0 178,0 5 40

SORPASSO FASER FIBER-T saldatura a bicchiere
FASER FIBER-T SWAN NECK socket welding
Articolo Peso
Item DN /OD SDR B D E Weight

mm mm mm g pezzi pezzi
pieces pieces
65414 20 7,4 20,0 385,0 56,0 61,0 10 250
65416 25 7,4 25,0 385,0 61,0 93,0 10 70
65418 32 7,4 32,0 385,0 68,0 152,0 5 40
