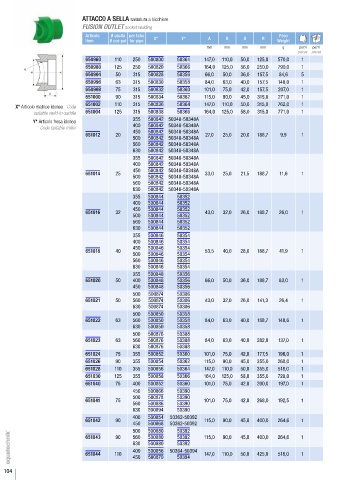

ATTACCO A SELLA saldatura a bicchiere
FUSION OUTLET socket welding
Articolo Ø uscita per tubo Peso
Item Ø out-put for pipe X* Y* A B D R Weight
mm mm mm mm g pezzi pezzi
pieces pieces
650960 110 250 500800 50364 147,0 110,0 50,0 125,0 570,0 1

650980 125 250 500820 50366 164,0 125,0 56,0 250,0 790,0 1
650994 50 315 500828 50356 66,0 50,0 36,0 157,5 84,6 5
650996 63 315 500830 50358 84,0 63,0 40,0 157,5 140,0 1
650998 75 315 500832 50360 101,0 75,0 42,0 157,5 207,0 1
651000 90 315 500834 50362 115,0 90,0 45,0 315,0 271,0 1
651002 110 315 500836 50364 147,0 110,0 50,0 315,0 762,0 1
X* Articolo matrice idonea Code
suitable weld-in-saddle 651004 125 315 500838 50366 164,0 125,0 58,0 315,0 771,0 1
355 500842 50348-50348A
Y* Articolo fresa idonea
Code suitable miller 400 500842 50348-50348A
450 500842 50348-50348A

651012 20 500 500842 50348-50348A 27,0 25,0 20,0 188,7 9,9 1
560 500842 50348-50348A
630 500842 50348-50348A
355 500842 50348-50348A
400 500842 50348-50348A
450 500842 50348-50348A
651014 25 500 500842 50348-50348A 33,0 25,0 21,5 188,7 11,6 1

560 500842 50348-50348A
630 500842 50348-50348A
355 500844 50352
400 500844 50352
450 500844 50352

651016 32 500 500844 50352 43,0 32,0 26,0 188,7 26,0 1
560 500844 50352
630 500844 50352
355 500846 50354
400 500846 50354
450 500846 50354
651018 40 500 500846 50354 53,5 40,0 28,0 188,7 41,9 1

560 500846 50354
630 500846 50354
355 500848 50356
651020 50 400 500848 50356 66,0 50,0 36,0 188,7 83,0 1
450 500848 50356
500 500874 50386

651021 50 560 500874 50386 43,0 32,0 26,0 141,3 26,4 1
630 500874 50386
500 500850 50358
651022 63 560 500850 50358 84,0 63,0 40,0 188,7 140,6 1
630 500850 50358
500 500876 50388

651023 63 560 500876 50388 84,0 63,0 40,0 282,0 137,0 1

630 500876 50388
651024 75 355 500852 50360 101,0 75,0 42,0 177,5 196,0 1
651026 90 355 500854 50362 115,0 90,0 45,0 355,0 268,0 1
651028 110 355 500856 50364 147,0 110,0 50,0 355,0 518,0 1
651030 125 355 500858 50366 164,0 125,0 58,0 355,0 728,0 1
651040 75 400 500852 50360 101,0 75,0 42,0 200,0 197,0 1
450 500866 50390
651041 500 500878 50390

75 560 500886 50390 101,0 75,0 42,0 268,0 192,5 1
630 500894 50390
400 500854 50362-50392

651042 90 450 500868 50362-50392 115,0 90,0 45,0 400,0 264,6 1
500 500880 50392
651043 90 560 500880 50392 115,0 90,0 45,0 400,0 264,6 1
630 500880 50392
651044 400 500856 50364-50394
110 450 500870 50394 147,0 110,0 50,0 425,0 518,0 1

104
