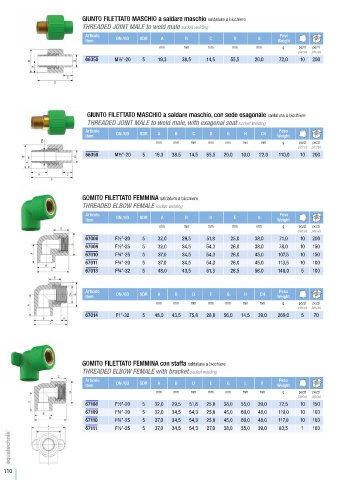

GIUNTO FILETTATO MASCHIO a saldare maschio saldatura a bicchiere
THREADED JOINT MALE to weld male socket welding
Articolo Peso
Item DN /OD SDR A B C D G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
66350 M½”-20 5 19,3 38,5 14,5 55,5 20,0 72,0 10 200
GIUNTO FILETTATO MASCHIO a saldare maschio, con sede esagonale saldatura a bicchiere
THREADED JOINT MALE to weld male, with exagonal seat socket welding
Articolo Peso
Item DN /OD SDR A B C D G H CH Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
66358 M½”-20 5 19,3 38,5 14,5 65,5 20,0 10,0 22,0 110,0 10 200
GOMITO FILETTATO FEMMINA saldatura a bicchiere
THREADED ELBOW FEMALE socket welding
Articolo Peso
Item DN /OD SDR A B D E G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
67008 F½”-20 5 32,0 29,5 51,8 25,0 38,0 71,0 10 200
67009 F½”-25 5 32,0 34,5 54,3 26,0 38,0 78,0 10 150
67010 F¾”-25 5 37,0 34,5 54,3 26,0 45,0 107,5 10 150
67011 F¾”-20 5 37,0 34,5 54,3 26,0 45,0 113,5 10 100
67013 F¾”-32 5 48,0 43,5 61,3 26,5 56,0 148,0 5 100
Articolo Peso
Item DN /OD SDR A B D E G H CH Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
67014 F1”-32 5 48,0 43,5 75,8 28,0 56,0 14,5 39,0 269,0 5 70
GOMITO FILETTATO FEMMINA con staffa saldatura a bicchiere
THREADED ELBOW FEMALE with bracket socket welding
Articolo Peso
Item DN /OD SDR A B D E G L F Weight
mm mm mm mm mm mm mm g pezzi pezzi
pieces pieces
67108 F½”-20 5 32,0 29,5 51,8 25,0 38,0 55,0 39,0 72,5 10 150
67109 F¾”-20 5 32,0 34,5 54,3 25,0 45,0 69,0 48,0 119,0 10 100
67110 F¾”-25 5 37,0 34,5 54,3 25,0 45,0 69,0 48,0 117,0 10 100
67111 F½”-25 5 37,0 34,5 54,3 27,0 38,0 55,0 39,0 83,5 1 100
