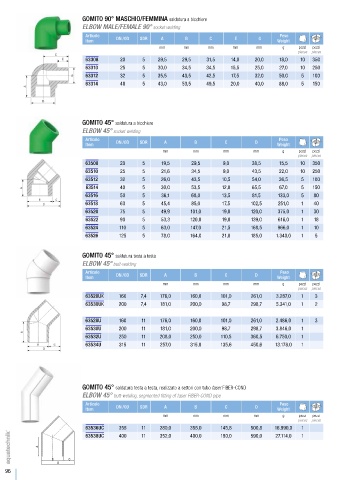

Page 98 - AQUATECHNIK - FUSIO-TECHNIK

GOMITO 90° MASCHIO/FEMMINA saldatura a bicchiere
ELBOW MALE/FEMALE 90° socket welding
Articolo Peso

Item DN /OD SDR A B C E G Weight
mm mm mm mm mm g pezzi pezzi
pieces pieces
63308 20 5 29,5 29,5 31,5 14,0 20,0 18,0 10 350
63310 25 5 30,0 34,5 34,5 15,5 25,0 27,0 10 250
63312 32 5 35,5 43,5 42,5 17,5 32,0 50,0 5 100
63314 40 5 43,0 53,5 49,5 20,0 40,0 88,0 5 150

GOMITO 45° saldatura a bicchiere
ELBOW 45° socket welding
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63508 20 5 19,5 29,5 9,0 38,5 15,5 10 350
63510 25 5 21,6 34,5 9,0 43,5 22,0 10 250
63512 32 5 26,0 43,5 10,5 54,0 36,5 5 100
63514 40 5 30,0 53,5 12,0 65,5 67,0 5 150
63516 50 5 36,1 68,0 13,5 81,5 133,0 5 80
63518 63 5 45,4 85,0 17,5 102,5 251,0 1 40
63520 75 5 49,9 101,0 19,0 120,0 375,0 1 30
63522 90 5 53,3 120,0 19,0 139,0 616,0 1 18
63524 110 5 63,0 147,0 21,5 168,5 966,0 1 10
63526 125 5 78,0 164,0 21,0 185,0 1.340,0 1 5

GOMITO 45° saldatura testa a testa
ELBOW 45° butt-welding
Articolo Peso

Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63528UK 160 7,4 176,0 160,0 101,0 261,0 3.287,0 1 3
63530UK 200 7,4 181,0 200,0 98,7 298,7 5.341,0 1 2

63528U 160 11 176,0 160,0 101,0 261,0 2.486,0 1 3

63530U 200 11 181,0 200,0 98,7 298,7 3.846,0 1
63532U 250 11 208,0 250,0 110,5 360,5 6.750,0 1
63534U 315 11 257,0 315,0 135,6 450,6 13.178,0 1

GOMITO 45° saldatura testa a testa, realizzato a settori con tubo faser FIBER-COND
ELBOW 45° butt-welding, segmented fitting of faser FIBER-COND pipe
Articolo Peso
Item DN /OD SDR A B C D Weight

mm mm mm mm g pezzi pezzi
pieces pieces
63536UC 355 11 280,0 355,0 145,8 500,8 16.990,0 1
63538UC 400 11 352,0 400,0 190,0 590,0 27.114,0 1

A
B C
D
96
