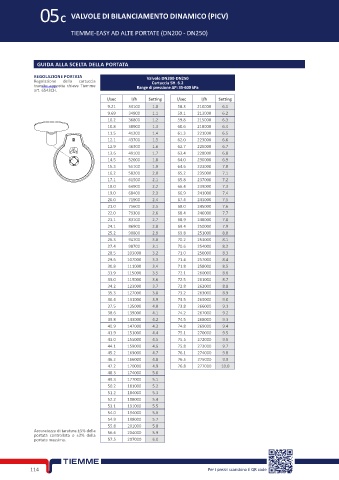

Page 128 - TIEMME - CENTRALE TERMICA E CONTABILIZZAZIONE

05C VALVOLE DI BILANCIAMENTO DINAMICO (PICV)

TIEMME-EASY AD ALTE PORTATE (DN200 - DN250)

GUIDA ALLA SCELTA DELLA PORTATA

REGOLAZIONE PORTATA Valvole DN200-DN250
Regolazione della cartuccia Cartuccia SH. 6.2
tramite apposita chiave Tiemme Range di pressione ΔP: 35-600 kPa
art. 6543CH.
l/sec l/h Setting l/sec l/h Setting
9.21 33100 1.0 58.3 210000 6.1
9.69 34900 1.1 59.1 213000 6.2
10.2 36800 1.2 59.8 215000 6.3
10.8 38900 1.3 60.6 218000 6.4
11.5 41200 1.4 61.3 221000 6.5
12.1 43700 1.5 62.0 223000 6.6
12.9 46300 1.6 62.7 226000 6.7
13.6 49100 1.7 63.4 228000 6.8
14.5 52000 1.8 64.0 230000 6.9
15.3 55100 1.9 64.6 233000 7.0
16.2 58200 2.0 65.2 235000 7.1
17.1 61500 2.1 65.8 237000 7.2
18.0 64900 2.2 66.4 239000 7.3
19.0 68400 2.3 66.9 241000 7.4
20.0 71900 2.4 67.4 243000 7.5
21.0 75600 2.5 68.0 245000 7.6
22.0 79300 2.6 68.4 246000 7.7
23.1 83100 2.7 68.9 248000 7.8
24.1 86900 2.8 69.4 250000 7.9
25.2 90800 2.9 69.8 251000 8.0
26.3 94700 3.0 70.2 253000 8.1
27.4 98700 3.1 70.6 254000 8.2
28.5 103000 3.2 71.0 256000 8.3
29.6 107000 3.3 71.4 257000 8.4
30.8 111000 3.4 71.8 258000 8.5
31.9 115000 3.5 72.1 260000 8.6
33.0 119000 3.6 72.5 261000 8.7
34.2 123000 3.7 72.8 262000 8.8
35.3 127000 3.8 73.2 263000 8.9
36.4 131000 3.9 73.5 265000 9.0
37.5 135000 4.0 73.8 266000 9.1
38.6 139000 4.1 74.2 267000 9.2
39.8 143000 4.2 74.5 268000 9.3
40.9 147000 4.3 74.8 269000 9.4
41.9 151000 4.4 75.1 270000 9.5
43.0 155000 4.5 75.5 272000 9.6
44.1 159000 4.6 75.8 273000 9.7
45.2 163000 4.7 76.1 274000 9.8
46.2 166000 4.8 76.5 275000 9.9
47.2 170000 4.9 76.8 277000 10.0
48.3 174000 5.0
49.3 177000 5.1
50.2 181000 5.2
51.2 184000 5.3
52.2 188000 5.4
53.1 191000 5.5
54.0 194000 5.6
54.9 198000 5.7
55.8 201000 5.8
Accuratezza di taratura ±5% della 56.6 204000 5.9
portata controllata o ±2% della
portata massima. 57.5 207000 6.0
