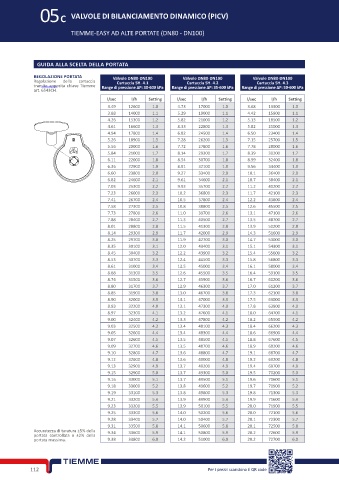

Page 126 - TIEMME - CENTRALE TERMICA E CONTABILIZZAZIONE

05C VALVOLE DI BILANCIAMENTO DINAMICO (PICV)

TIEMME-EASY AD ALTE PORTATE (DN80 - DN100)

GUIDA ALLA SCELTA DELLA PORTATA

REGOLAZIONE PORTATA Valvole DN80-DN100 Valvole DN80-DN100 Valvole DN80-DN100
Regolazione della cartuccia Cartuccia SH. 4.1 Cartuccia SH. 4.2 Cartuccia SH. 4.3
tramite apposita chiave Tiemme Range di pressione ΔP: 30-600 kPa Range di pressione ΔP: 35-600 kPa Range di pressione ΔP: 50-600 kPa
art. 6543CH.
l/sec l/h Setting l/sec l/h Setting l/sec l/h Setting
3.49 12600 1.0 4.73 17000 1.0 3.68 13300 1.0
3.88 14000 1.1 5.29 19000 1.1 4.42 15900 1.1
4.26 15300 1.2 5.82 21000 1.2 5.13 18500 1.2
4.61 16600 1.3 8.33 22800 1.3 5.82 21000 1.3
4.94 17800 1.4 6.82 24500 1.4 6.50 23400 1.4
5.26 18900 1.5 7.28 26200 1.5 7.15 25700 1.5
5.56 20000 1.6 7.72 27800 1.6 7.78 28000 1.6
5.84 21000 1.7 8.14 29300 1.7 8.39 30200 1.7
6.11 22000 1.8 8.54 30700 1.8 8.99 32400 1.8
6.36 22900 1.9 8.91 32100 1.9 9.56 34400 1.9
6.60 23800 2.0 9.27 33400 2.0 10.1 36400 2.0
6.82 24600 2.1 9.61 34600 2.1 10.7 38400 2.1
7.03 25300 2.2 9.93 35700 2.2 11.2 40200 2.2
7.23 26000 2.3 10.2 36800 2.3 11.7 42100 2.3
7.41 26700 2.4 10.5 37800 2.4 12.2 43800 2.4
7.58 27300 2.5 10.8 38800 2.5 12.6 45500 2.5
7.73 27800 2.6 11.0 39700 2.6 13.1 47100 2.6
7.88 28400 2.7 11.3 40500 2.7 13.5 48700 2.7
8.01 28800 2.8 11.5 41300 2.8 13.9 50200 2.8
8.14 29300 2.9 11.7 42000 2.9 14.3 51600 2.9
8.25 29700 3.0 11.9 42700 3.0 14.7 53000 3.0
8.35 30100 3.1 12.0 43400 3.1 15.1 54300 3.1
8.45 30400 3.2 12.2 43900 3.2 15.4 55600 3.2
8.53 30700 3.3 12.4 44500 3.3 15.8 56800 3.3
8.61 31000 3.4 12.5 45000 3.4 16.1 58000 3.4
8.68 31300 3.5 12.6 45500 3.5 16.4 59100 3.5
8.74 31500 3.6 12.7 45900 3.6 16.7 60200 3.6
8.80 31700 3.7 12.9 46300 3.7 17.0 61200 3.7
8.85 31900 3.8 13.0 46700 3.8 17.3 62100 3.8
8.90 32000 3.9 13.1 47000 3.9 17.5 63000 3.9
8.93 32200 4.0 13.1 47300 4.0 17.8 63900 4.0
8.97 32300 4.1 13.2 47600 4.1 18.0 64700 4.1
9.00 32400 4.2 13.3 47800 4.2 18.2 65500 4.2
9.03 32500 4.3 13.4 48100 4.3 18.4 66200 4.3
9.05 32600 4.4 13.4 48300 4.4 18.6 66900 4.4
9.07 32600 4.5 13.5 48500 4.5 18.8 67600 4.5
9.09 32700 4.6 13.5 48700 4.6 18.9 68200 4.6
9.10 32800 4.7 13.6 48800 4.7 19.1 68700 4.7
9.12 32800 4.8 13.6 49000 4.8 19.2 69200 4.8
9.13 32900 4.9 13.7 49200 4.9 19.4 69700 4.9
9.15 32900 5.0 13.7 49300 5.0 19.5 70200 5.0
9.16 33000 5.1 13.7 49500 5.1 19.6 70600 5.1
9.18 33000 5.2 13.8 49600 5.2 19.7 70900 5.2
9.19 33100 5.3 13.8 49800 5.3 19.8 71300 5.3
9.21 33200 5.4 13.9 49900 5.4 19.9 71600 5.4
9.23 33200 5.5 13.9 50100 5.5 20.0 71900 5.5
9.25 33300 5.6 14.0 50200 5.6 20.0 72100 5.6
9.28 33400 5.7 14.0 50400 5.7 20.1 72300 5.7
9.31 33500 5.8 14.1 50600 5.8 20.1 72500 5.8
Accuratezza di taratura ±5% della 9.34 33600 5.9 14.1 50800 5.9 20.2 72600 5.9
portata controllata o ±2% della
portata massima. 9.38 33800 6.0 14.2 51000 6.0 20.2 72700 6.0
