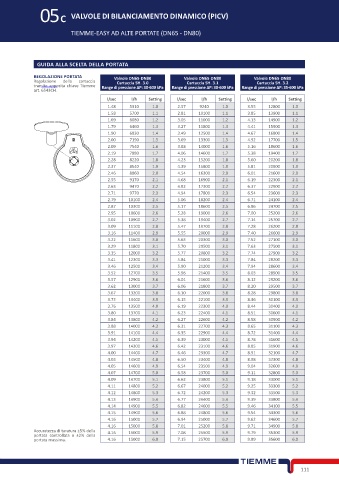

05C VALVOLE DI BILANCIAMENTO DINAMICO (PICV)

TIEMME-EASY AD ALTE PORTATE (DN65 - DN80)

GUIDA ALLA SCELTA DELLA PORTATA

REGOLAZIONE PORTATA Valvole DN65-DN80 Valvole DN65-DN80 Valvole DN65-DN80
Regolazione della cartuccia Cartuccia SH. 3.0 Cartuccia SH. 3.1 Cartuccia SH. 3.2
tramite apposita chiave Tiemme Range di pressione ΔP: 30-600 kPa Range di pressione ΔP: 30-600 kPa Range di pressione ΔP: 35-600 kPa
art. 6543CH.
l/sec l/h Setting l/sec l/h Setting l/sec l/h Setting
1.48 5310 1.0 2.57 9240 1.0 3.55 12800 1.0
1.58 5700 1.1 2.81 10100 1.1 3.85 13900 1.1
1.69 6080 1.2 3.05 11000 1.2 4.13 14900 1.2
1.79 6460 1.3 3.27 11800 1.3 4.41 15900 1.3
1.90 6830 1.4 3.49 12500 1.4 4.67 16800 1.4
2.00 7190 1.5 3.69 13300 1.5 4.92 17700 1.5
2.09 7540 1.6 3.88 14000 1.6 5.16 18600 1.6
2.19 7880 1.7 4.06 14600 1.7 5.38 19400 1.7
2.28 8220 1.8 4.23 15200 1.8 5.60 20200 1.8
2.37 8540 1.9 4.39 15800 1.9 5.81 20900 1.9
2.46 8860 2.0 4.54 16300 2.0 6.01 21600 2.0
2.55 9170 2.1 4.68 16900 2.1 6.19 22300 2.1
2.63 9470 2.2 4.82 17300 2.2 6.37 22900 2.2
2.71 9770 2.3 4.94 17800 2.3 6.54 23600 2.3
2.79 10100 2.4 5.06 18200 2.4 6.71 24100 2.4
2.87 10300 2.5 5.17 18600 2.5 6.86 24700 2.5
2.95 10600 2.6 5.28 19000 2.6 7.00 25200 2.6
3.02 10900 2.7 5.38 19400 2.7 7.14 25700 2.7
3.09 11100 2.8 5.47 19700 2.8 7.28 26200 2.8
3.16 11400 2.9 5.55 20000 2.9 7.40 26600 2.9
3.22 11600 3.0 5.63 20300 3.0 7.52 27100 3.0
3.29 11800 3.1 5.70 20500 3.1 7.63 27500 3.1
3.35 12000 3.2 5.77 20800 3.2 7.74 27900 3.2
3.41 12300 3.3 5.84 21000 3.3 7.84 28200 3.3
3.46 12500 3.4 5.90 21200 3.4 7.94 28600 3.4
3.52 12700 3.5 5.96 21400 3.5 8.03 28900 3.5
3.57 12900 3.6 6.01 21600 3.6 8.12 29200 3.6
3.62 13000 3.7 6.06 21800 3.7 8.20 29500 3.7
3.67 13200 3.8 6.10 22000 3.8 8.28 29800 3.8
3.72 13400 3.9 6.15 22100 3.9 8.36 30100 3.9
3.76 13500 4.0 6.19 22300 4.0 8.44 30400 4.0
3.80 13700 4.1 6.23 22400 4.1 8.51 30600 4.1
3.84 13800 4.2 6.27 22600 4.2 8.58 30900 4.2
3.88 14000 4.3 6.31 22700 4.3 8.65 31100 4.3
3.91 14100 4.4 6.35 22900 4.4 8.72 31400 4.4
3.94 14200 4.5 6.39 23000 4.5 8.78 31600 4.5
3.97 14300 4.6 6.42 23100 4.6 8.85 31900 4.6
4.00 14400 4.7 6.46 23300 4.7 8.91 32100 4.7
4.03 14500 4.8 6.50 23400 4.8 8.98 32300 4.8
4.05 14600 4.9 6.54 23500 4.9 9.04 32600 4.9
4.07 14700 5.0 6.58 23700 5.0 9.11 32800 5.0
4.09 14700 5.1 6.62 23800 5.1 9.18 33000 5.1
4.11 14800 5.2 6.67 24000 5.2 9.25 33300 5.2
4.12 14800 5.3 6.72 24200 5.3 9.32 33500 5.3
4.13 14900 5.4 6.77 24400 5.4 9.39 33800 5.4
4.14 14900 5.5 6.82 24600 5.5 9.46 34100 5.5
4.15 14900 5.6 6.88 24800 5.6 9.54 34300 5.6
4.16 15000 5.7 6.94 25000 5.7 9.62 34600 5.7
4.16 15000 5.8 7.01 25200 5.8 9.71 34900 5.8
Accuratezza di taratura ±5% della 4.16 15000 5.9 7.08 25500 5.9 9.79 35300 5.9
portata controllata o ±2% della
portata massima. 4.16 15000 6.0 7.15 25700 6.0 9.89 35600 6.0
