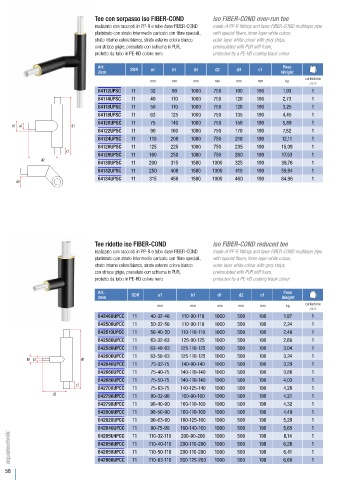

Tee con sorpasso iso FIBER-COND iso FIBER-COND over-run tee
realizzato con raccordi in PP-R e tubo faser FIBER-COND made of PP-R fittings and faser FIBER-COND multilayer pipe
pluristrato con strato intermedio caricato con fibre speciali, with special fibers, inner layer white colour,
strato interno colore bianco, strato esterno colore bianco outer layer white colour with grey strips,
con strisce grigie, preisolato con schiuma in PUR, preinsulated with PUR stiff foam,
protetto da tubo in PE-HD colore nero protected by a PE-HD coating black colour

Art. SDR a1 b1 d1 d2 d3 c1 Peso

Item Weight
b1 b2 confezione
mm mm mm mm mm mm kg
pack
64112UPSC 11 32 90 1000 750 100 190 1,93 1
64114UPSC 11 40 110 1000 750 120 190 2,73 1
64116UPSC 11 50 110 1000 750 120 190 3,25 1
64118UPSC 11 63 125 1000 750 135 190 4,45 1
64120UPSC 11 75 140 1000 750 150 190 5,89 1
b1 a1 d1
64122UPSC 11 90 160 1000 750 170 190 7,82 1
64124UPSC 11 110 200 1000 750 210 190 12,11 1
64126UPSC 11 125 225 1000 750 235 190 15,09 1
c1
64128UPSC 11 160 250 1000 750 260 190 17,53 1
d2
64130UPSC 11 200 315 1500 1000 325 190 39,76 1
64132UPSC 11 250 400 1500 1000 410 190 59,94 1
64134UPSC 11 315 450 1500 1000 460 190 84,96 1
d3

Tee ridotto iso FIBER-COND iso FIBER-COND reduced tee
realizzato con raccordi in PP-R e tubo faser FIBER-COND made of PP-R fittings and faser FIBER-COND multilayer pipe
pluristrato con strato intermedio caricato con fibre speciali, with special fibers, inner layer white colour,
strato interno colore bianco, strato esterno colore bianco outer layer white colour with grey strips,
con strisce grigie, preisolato con schiuma in PUR, preinsulated with PUR stiff foam,
protetto da tubo in PE-HD colore nero protected by a PE-HD coating black colour

Art. SDR a1 b1 d1 d2 c1 Peso

Item Weight
b1 b2 mm mm mm mm mm kg confezione
pack
642460UPCC 11 40-32-40 110-90-110 1000 500 190 1,97 1
642500UPCC 11 50-32-50 110-90-110 1000 500 190 2,24 1
642510UPCC 11 50-40-50 110-110-110 1000 500 190 2,40 1
642560UPCC 11 63-32-63 125-90-125 1000 500 190 2,68 1
642580UPCC 11 63-40-63 125-110-125 1000 500 190 3,04 1
642600UPCC 11 63-50-63 125-110-125 1000 500 190 3,24 1
b1 a1 d1
642640UPCC 11 75-32-75 140-90-140 1000 500 190 3,29 1
642660UPCC 11 75-40-75 140-110-140 1000 500 190 3,86 1
642680UPCC 11 75-50-75 140-110-140 1000 500 190 4,03 1
c1
642700UPCC 11 75-63-75 140-125-140 1000 500 190 4,20 1
d2 642796UPCC 11 90-32-90 160-90-160 1000 500 190 4,21 1
642798UPCC 11 90-40-90 160-110-160 1000 500 190 4,32 1
642800UPCC 11 90-50-90 160-110-160 1000 500 190 4,49 1
642820UPCC 11 90-63-90 160-125-160 1000 500 190 5,29 1
642840UPCC 11 90-75-90 160-140-160 1000 500 190 5,65 1
64285U4PCC 11 110-32-110 200-90-200 1000 500 190 6,14 1
642856UPCC 11 110-40-110 200-110-200 1000 500 190 6,26 1
642858UPCC 11 110-50-110 200-110-200 1000 500 190 6,41 1
642860UPCC 11 110-63-110 200-125-200 1000 500 190 6,68 1
