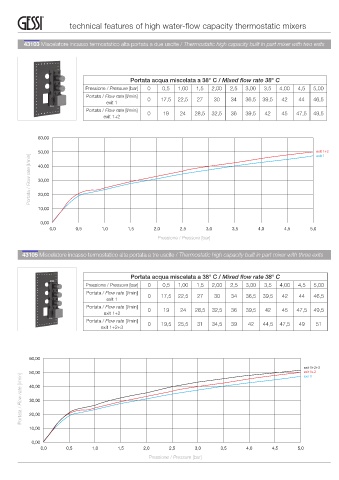

technical features of high water-flow capacity thermostatic mixers
43103 Miscelatore incasso termostatico alta portata a due uscite / Thermostatic high capacity built in part mixer with two exits
Portata acqua miscelata a 38° C / Mixed flow rate 38° C
Pressione / Pressure [bar] 0 0,5 1,00 1,5 2,00 2,5 3,00 3,5 4,00 4,5 5,00
Portata / Flow rate [l/min] 0 17,5 22,5 27 30 34 36,5 39,5 42 44 46,5
exit 1
Portata / Flow rate [l/min] 0 19 24 28,5 32,5 36 39,5 42 45 47,5 49,5
exit 1+2
60,00
50,00 exit 1+2
Portata / Flow rate [l/min] 40,00
exit 1
30,00
20,00
10,00
0,00
0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0
Pressione / Pressure [bar]
43105 Miscelatore incasso termostatico alta portata a tre uscite / Thermostatic high capacity built in part mixer with three exits
Portata acqua miscelata a 38° C / Mixed flow rate 38° C
Pressione / Pressure [bar] 0 0,5 1,00 1,5 2,00 2,5 3,00 3,5 4,00 4,5 5,00
Portata / Flow rate [l/min] 0 17,5 22,5 27 30 34 36,5 39,5 42 44 46,5
exit 1
Portata / Flow rate [l/min] 0 19 24 28,5 32,5 36 39,5 42 45 47,5 49,5
exit 1+2
Portata / Flow rate [l/min] 0 19,5 25,5 31 34,5 39 42 44,5 47,5 49 51
exit 1+2+3
60,00
exit 1+2+3
50,00 exit 1+2
Portata / Flow rate [l/min] 40,00
exit 1
30,00
20,00
10,00
0,00
0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0
Pressione / Pressure [bar]
