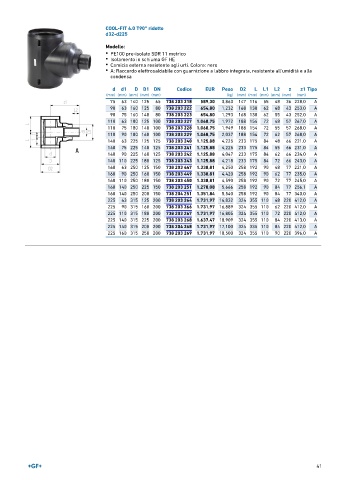

Page 41 - GEORGFISCHER - LISTINO 898

COOL-FIT 4.0 T90° ridotto
d32-d225

Modello:
• PE100 pre-isolato SDR 11 metrico
• Isolamento in schiuma GF HE
• Camicia esterna resistente agli urti. Colore: nero
• A: Raccordo elettrosaldabile con guarnizione a labbro integrata, resistente all'umidità e alla
condensa

d d1 D D1 DN Codice EUR Peso D2 L L1 L2 z z1 Tipo
(mm) (mm) (mm) (mm) (mm) (kg) (mm) (mm) (mm) (mm) (mm) (mm)
75 63 140 125 65 738 203 218 589,30 0,863 147 116 55 48 36 228,0 A
90 63 160 125 80 738 203 222 654,80 1,232 168 130 62 48 43 253,0 A
90 75 160 140 80 738 203 223 654,80 1,293 168 130 62 55 43 252,0 A
110 63 180 125 100 738 203 227 1.068,75 1,972 188 154 72 48 57 267,0 A
110 75 180 140 100 738 203 228 1.068,75 1,949 188 154 72 55 57 268,0 A
110 90 180 160 100 738 203 229 1.068,75 2,037 188 154 72 62 57 268,0 A
140 63 225 125 125 738 203 240 1.125,88 4,225 233 175 84 48 66 221,0 A
140 75 225 140 125 738 203 241 1.125,88 4,225 233 175 84 55 66 231,0 A
140 90 225 160 125 738 203 242 1.125,88 4,047 233 175 84 62 66 234,0 A
140 110 225 180 125 738 203 243 1.125,88 4,218 233 175 84 72 66 243,0 A
160 63 250 125 150 738 203 447 1.338,81 4,250 258 192 90 48 77 221,0 A
160 90 250 160 150 738 203 449 1.338,81 4,420 258 192 90 62 77 235,0 A
160 110 250 180 150 738 203 450 1.338,81 4,590 258 192 90 72 77 245,0 A
160 140 250 225 150 738 203 251 1.278,08 5,666 258 192 90 84 77 256,1 A
160 140 250 200 150 738 204 251 1.351,84 5,540 258 192 90 84 77 340,0 A
225 63 315 125 200 738 203 264 1.731,97 16,832 324 355 110 48 220 412,0 A
225 90 315 160 200 738 203 266 1.731,97 16,889 324 355 110 62 220 412,0 A
225 110 315 180 200 738 203 267 1.731,97 16,805 324 355 110 72 220 412,0 A
225 140 315 225 200 738 203 268 1.637,47 18,909 324 355 110 84 220 413,0 A
225 140 315 200 200 738 204 268 1.731,97 17,100 324 335 110 84 220 412,0 A
225 160 315 250 200 738 203 269 1.731,97 18,500 324 355 110 90 220 396,0 A
