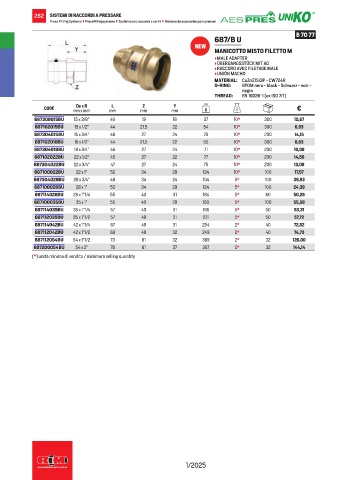

Page 264 - RACCORDERIEMETALLICHE - LISTINO 2025 - FIDRA

262 SISTEMI DI RACCORDI A PRESSARE
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 70 77
687/B U
NEW
MANICOTTO MISTO FILETTO M
• MALE ADAPTER
• ÜBERGANGSSTÜCK MIT AG
• RACCORD AVEC FILETAGE MALE
• UNIÓN MACHO
MATERIAL: CuZn21Si3P - CW724R
O-RING: EPDM nero - black - Schwarz - noir -
negro
THREAD: EN 10226-1 (ex ISO 7/1)

L
De x R
Y
Z
CODE mm x inch mm mm mm g €
687308015BU 15 x 3/8” 40 19 18 37 10* 300 10,67
687102015BU 15 x 1/2” 44 21,5 22 54 10* 300 6,93
687304015BU 15 x 3/4” 46 27 24 70 10* 200 14,15
687102018BU 18 x 1/2” 44 21,5 22 56 10* 300 8,83
687304018BU 18 x 3/4” 46 27 24 71 10* 200 10,08
687102022BU 22 x 1/2” 45 27 22 77 10* 200 14,56
687304022BU 22 x 3/4” 47 27 24 75 10* 200 13,08
687100022BU 22 x 1” 52 34 29 124 10* 100 17,57
687304028BU 28 x 3/4” 48 34 24 104 5* 100 39,93
687100028BU 28 x 1” 53 34 29 124 5* 100 24,39
687114028BU 28 x 1”1/4 55 43 31 184 5* 60 50,29
687100035BU 35 x 1” 55 40 29 160 5* 100 55,59
687114035BU 35 x 1”1/4 57 43 31 186 5* 50 53,31
687112035BU 35 x 1”1/2 57 49 31 231 5* 50 57,72
687114042BU 42 x 1”1/4 67 49 31 254 2* 40 72,52
687112042BU 42 x 1”1/2 68 49 32 249 2* 40 74,73
687112054BU 54 x 1”1/2 73 61 32 369 2* 32 126,00
687200054BU 54 x 2” 78 61 37 367 2* 32 144,14
(*) unità minima di vendita / minimum selling quantity
