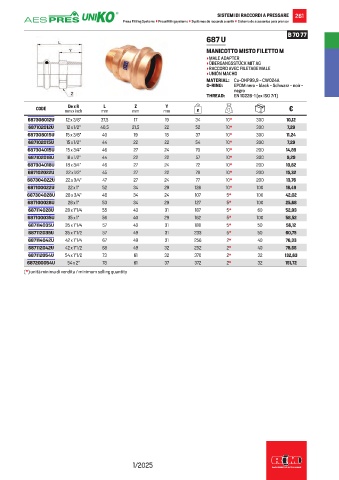

Page 263 - RACCORDERIEMETALLICHE - LISTINO 2025 - FIDRA

SISTEMI DI RACCORDI A PRESSARE 261
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 70 77
687 U
MANICOTTO MISTO FILETTO M
• MALE ADAPTER
• ÜBERGANGSSTÜCK MIT AG
• RACCORD AVEC FILETAGE MALE
• UNIÓN MACHO
MATERIAL: Cu-DHP99,9 - CW024A
O-RING: EPDM nero - black - Schwarz - noir -
negro
THREAD: EN 10226-1 (ex ISO 7/1)

De x R
L
Z
Y
CODE mm x inch mm mm mm g €
687308012U 12 x 3/8” 37,5 17 19 34 10* 300 10,12
687102012U 12 x 1/2” 40,5 21,5 22 52 10* 300 7,29
687308015U 15 x 3/8” 40 19 18 37 10* 300 11,24
687102015U 15 x 1/2” 44 22 22 54 10* 300 7,29
687304015U 15 x 3/4” 46 27 24 70 10* 200 14,89
687102018U 18 x 1/2” 44 22 22 57 10* 300 9,29
687304018U 18 x 3/4” 46 27 24 72 10* 200 10,62
687102022U 22 x 1/2” 45 27 22 79 10* 200 15,32
687304022U 22 x 3/4” 47 27 24 77 10* 200 13,76
687100022U 22 x 1” 52 34 29 126 10* 100 18,49
687304028U 28 x 3/4” 48 34 24 107 5* 100 42,02
687100028U 28 x 1” 53 34 29 127 5* 100 25,68
687114028U 28 x 1”1/4 55 43 31 187 5* 60 52,93
687100035U 35 x 1” 56 40 29 162 5* 100 58,52
687114035U 35 x 1”1/4 57 43 31 188 5* 50 56,12
687112035U 35 x 1”1/2 57 49 31 233 5* 50 60,75
687114042U 42 x 1”1/4 67 49 31 256 2* 40 76,33
687112042U 42 x 1”1/2 68 49 32 252 2* 40 78,66
687112054U 54 x 1”1/2 73 61 32 370 2* 32 132,63
687200054U 54 x 2” 78 61 37 372 2* 32 151,72
(*) unità minima di vendita / minimum selling quantity
