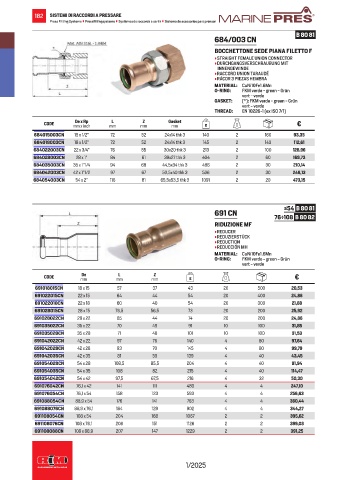

182 SISTEMI DI RACCORDI A PRESSARE
Press Fitting Systems • Pressfittingsysteme • Systèmes de raccords a sertir • Sistema de accesorios para prensar

B 80 81
684/003 CN
BOCCHETTONE SEDE PIANA FILETTO F
• STRAIGHT FEMALE UNION CONNECTOR
• DURCHGANGSVERSCHRAUBUNG MIT
INNENGEWINDE
• RACCORD UNION TARAUDÉ
• RÁCOR 3 PIEZAS HEMBRA
MATERIAL: CuNi10Fe1.6Mn
O-RING: FKM verde - green - Grün
vert - verde
GASKET: (*): FKM verde - green - Grün
vert - verde
THREAD: EN 10226-1 (ex ISO 7/1)
Z
L
De x Rp
CODE mm x inch mm mm Gasket g €
mm
684015003CN 15 x 1/2” 72 52 24x14 thk 3 140 2 160 93,35
684018003CN 18 x 1/2” 72 52 24x14 thk 3 145 2 140 112,61
684022003CN 22 x 3/4” 76 55 30x20 thk 3 213 2 100 128,96
684028003CN 28 x 1” 84 61 39x27 thk 3 404 2 60 169,73
684035003CN 35 x 1”1/4 94 68 44,5x34 thk 3 486 2 30 210,14
684042003CN 42 x 1”1/2 97 67 50,5x40 thk 3 536 2 30 248,13
684054003CN 54 x 2” 116 81 65,5x53,5 thk 3 1091 2 20 473,15

≤54 B 80 81
691 CN
76÷108 B 80 82
RIDUZIONE MF
• REDUCER
• REDUZIERSTÜCK
• REDUCTION
• REDUCCIÓN MH
MATERIAL: CuNi10Fe1.6Mn
O-RING: FKM verde - green - Grün
vert - verde

De
L
Z
CODE mm mm mm g €
691018015CN 18 x 15 57 37 43 20 500 20,53
691022015CN 22 x 15 64 44 54 20 400 24,86
691022018CN 22 x 18 60 40 54 20 300 21,88
691028015CN 28 x 15 76,5 56,5 73 20 200 25,92
691028022CN 28 x 22 65 44 74 20 200 24,86
691035022CN 35 x 22 70 49 91 10 100 31,85
691035028CN 35 x 28 71 48 101 10 100 31,53
691042022CN 42 x 22 97 76 140 4 80 97,64
691042028CN 42 x 28 93 70 145 4 80 99,79
691042035CN 42 x 35 81 55 139 4 40 43,45
691054028CN 54 x 28 108,5 85,5 204 4 40 91,94
691054035CN 54 x 35 108 82 215 4 40 114,47
691054042CN 54 x 42 97,5 67,5 216 4 32 50,30
691076042CN 76,1 x 42 141 111 489 4 4 247,10
691076054CN 76,1 x 54 158 123 593 4 4 256,63
691088054CN 88,9 x 54 176 141 763 4 4 360,44
691088076CN 88,9 x 76,1 184 129 902 4 4 344,27
691108054CN 108 x 54 204 168 1067 2 2 395,62
691108076CN 108 x 76,1 206 151 1126 2 2 399,03
691108088CN 108 x 88,9 207 147 1229 2 2 391,25

1/2025
