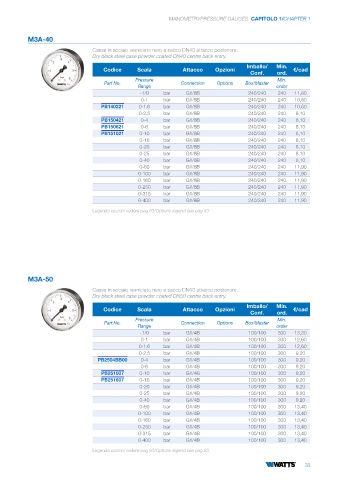

Page 35 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3A-40
Cassa in acciaio verniciato nero a secco DN40 attacco posteriore.
Dry black steel case powder coated DN40 centre back entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar G1/8B 240/240 240 11,80
0-1 bar G1/8B 240/240 240 10,80
PB140221 0-1.6 bar G1/8B 240/240 240 10,80
0-2.5 bar G1/8B 240/240 240 8,10
PB150421 0-4 bar G1/8B 240/240 240 8,10
PB150621 0-6 bar G1/8B 240/240 240 8,10
PB151021 0-10 bar G1/8B 240/240 240 8,10
0-16 bar G1/8B 240/240 240 8,10
0-20 bar G1/8B 240/240 240 8,10
0-25 bar G1/8B 240/240 240 8,10
0-40 bar G1/8B 240/240 240 8,10
0-60 bar G1/8B 240/240 240 11,90
0-100 bar G1/8B 240/240 240 11,90
0-160 bar G1/8B 240/240 240 11,90
0-250 bar G1/8B 240/240 240 11,90
0-315 bar G1/8B 240/240 240 11,90
0-400 bar G1/8B 240/240 240 11,90

Legenda opzioni vedere pag.83/Options legend see pag.83

M3A-50

Cassa in acciaio verniciato nero a secco DN50 attacco posteriore.
Dry black steel case powder coated DN50 centre back entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar G1/4B 100/100 300 13,30
0-1 bar G1/4B 100/100 300 12,60
0-1.6 bar G1/4B 100/100 300 12,60
0-2.5 bar G1/4B 100/100 300 9,20
PB2504BB00 0-4 bar G1/4B 100/100 300 9,20
0-6 bar G1/4B 100/100 300 9,20
PB251007 0-10 bar G1/4B 100/100 300 9,20
PB251607 0-16 bar G1/4B 100/100 300 9,20
0-20 bar G1/4B 100/100 300 9,20
0-25 bar G1/4B 100/100 300 9,20
0-40 bar G1/4B 100/100 300 9,20
0-60 bar G1/4B 100/100 300 13,40
0-100 bar G1/4B 100/100 300 13,40
0-160 bar G1/4B 100/100 300 13,40
0-250 bar G1/4B 100/100 300 13,40
0-315 bar G1/4B 100/100 300 13,40
0-400 bar G1/4B 100/100 300 13,40
Legenda opzioni vedere pag.83/Options legend see pag.83

33
