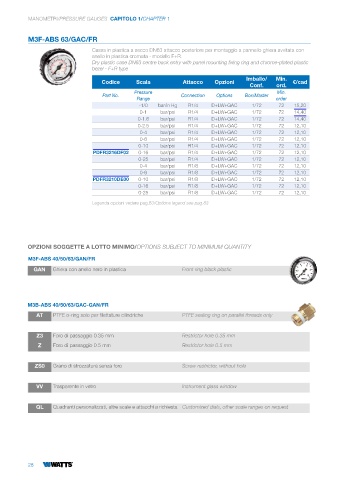

Page 30 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3F-ABS 63/GAC/FR
Cassa in plastica a secco DN63 attacco posteriore per montaggio a pannello ghiera avvitata con
anello in plastica cromata - modello F+R.
Dry plastic case DN63 centre back entry with panel mounting fixing ring and chrome-plated plastic
bezel - F+R type
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/4 D+LW+GAC 1/72 72 15,20
0-1 bar/psi R1/4 D+LW+GAC 1/72 72 14,40
0-1.6 bar/psi R1/4 D+LW+GAC 1/72 72 14,40
0-2.5 bar/psi R1/4 D+LW+GAC 1/72 72 12,10
0-4 bar/psi R1/4 D+LW+GAC 1/72 72 12,10
0-6 bar/psi R1/4 D+LW+GAC 1/72 72 12,10
0-10 bar/psi R1/4 D+LW+GAC 1/72 72 12,10
PDFR3216DF02 0-16 bar/psi R1/4 D+LW+GAC 1/72 72 12,10
0-25 bar/psi R1/4 D+LW+GAC 1/72 72 12,10
0-4 bar/psi R1/8 D+LW+GAC 1/72 72 12,10
0-6 bar/psi R1/8 D+LW+GAC 1/72 72 12,10
PDFR3210DE00 0-10 bar/psi R1/8 D+LW+GAC 1/72 72 12,10
0-16 bar/psi R1/8 D+LW+GAC 1/72 72 12,10
0-25 bar/psi R1/8 D+LW+GAC 1/72 72 12,10
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY

M3F-ABS 40/50/63/GAN/FR
GAN Ghiera con anello nero in plastica Front ring black plastic

M3B-ABS 40/50/63/GAC-GAN/FR
AT PTFE o-ring solo per filettature cilindriche PTFE sealing ring on parallel threads only

Z3 Foro di passaggio 0.35 mm Restrictor hole 0.35 mm
Z Foro di passaggio 0.5 mm Restrictor hole 0.5 mm

ZS0 Grano di strozzatura senza foro Screw restrictor, without hole

VV Trasparente in vetro Instrument glass window

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request
