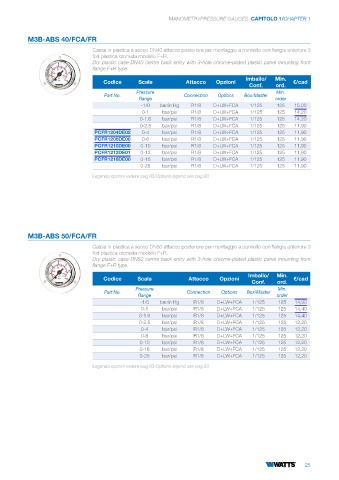

Page 27 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3B-ABS 40/FCA/FR
Cassa in plastica a secco DN40 attacco posteriore per montaggio a pannello con flangia anteriore 3
fori plastica cromata modello F+R.
Dry plastic case DN40 centre back entry with 3-hole chrome-plated plastic panel mounting front
flange F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW+FCA 1/125 125 15,00
0-1 bar/psi R1/8 D+LW+FCA 1/125 125 14,20
0-1.6 bar/psi R1/8 D+LW+FCA 1/125 125 14,20
0-2.5 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
PCFR1204DE02 0-4 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
PCFR1206DE00 0-6 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
PCFR1210DE00 0-10 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
PCFR1212DE01 0-12 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
PCFR1216DE00 0-16 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
0-25 bar/psi R1/8 D+LW+FCA 1/125 125 11,90
Legenda opzioni vedere pag.83/Options legend see pag.83

M3B-ABS 50/FCA/FR
Cassa in plastica a secco DN50 attacco posteriore per montaggio a pannello con flangia anteriore 3
fori plastica cromata modello F+R.
Dry plastic case DN50 centre back entry with 3-hole chrome-plated plastic panel mounting front
flange F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW+FCA 1/125 125 14,90
0-1 bar/psi R1/8 D+LW+FCA 1/125 125 14,40
0-1.6 bar/psi R1/8 D+LW+FCA 1/125 125 14,40
0-2.5 bar/psi R1/8 D+LW+FCA 1/125 125 12,20
0-4 bar/psi R1/8 D+LW+FCA 1/125 125 12,20
0-6 bar/psi R1/8 D+LW+FCA 1/125 125 12,20
0-10 bar/psi R1/8 D+LW+FCA 1/125 125 12,20
0-16 bar/psi R1/8 D+LW+FCA 1/125 125 12,20
0-25 bar/psi R1/8 D+LW+FCA 1/125 125 12,20

Legenda opzioni vedere pag.83/Options legend see pag.83

25
