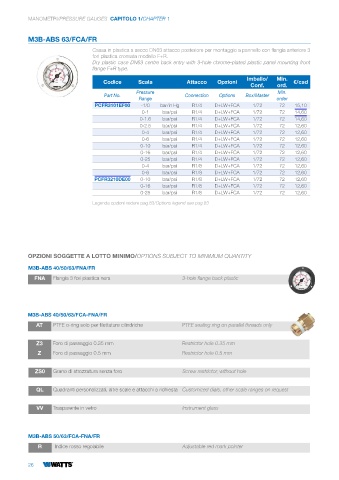

Page 28 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3B-ABS 63/FCA/FR
Cassa in plastica a secco DN63 attacco posteriore per montaggio a pannello con flangia anteriore 3
fori plastica cromata modello F+R.
Dry plastic case DN63 centre back entry with 3-hole chrome-plated plastic panel mounting front
flange F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PCFR3101EF00 -1/0 bar/in Hg R1/4 D+LW+FCA 1/72 72 15,10
0-1 bar/psi R1/4 D+LW+FCA 1/72 72 14,60
0-1.6 bar/psi R1/4 D+LW+FCA 1/72 72 14,60
0-2.5 bar/psi R1/4 D+LW+FCA 1/72 72 12,60
0-4 bar/psi R1/4 D+LW+FCA 1/72 72 12,60
0-6 bar/psi R1/4 D+LW+FCA 1/72 72 12,60
0-10 bar/psi R1/4 D+LW+FCA 1/72 72 12,60
0-16 bar/psi R1/4 D+LW+FCA 1/72 72 12,60
0-25 bar/psi R1/4 D+LW+FCA 1/72 72 12,60
0-4 bar/psi R1/8 D+LW+FCA 1/72 72 12,60
0-6 bar/psi R1/8 D+LW+FCA 1/72 72 12,60
PCFR3210DE00 0-10 bar/psi R1/8 D+LW+FCA 1/72 72 12,60
0-16 bar/psi R1/8 D+LW+FCA 1/72 72 12,60
0-25 bar/psi R1/8 D+LW+FCA 1/72 72 12,60
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY

M3B-ABS 40/50/63/FNA/FR
FNA Flangia 3 fori plastica nera 3-hole flange back plastic

M3B-ABS 40/50/63/FCA-FNA/FR
AT PTFE o-ring solo per filettature cilindriche PTFE sealing ring on parallel threads only

Z3 Foro di passaggio 0.35 mm Restrictor hole 0.35 mm

Z Foro di passaggio 0.5 mm Restrictor hole 0.5 mm

ZS0 Grano di strozzatura senza foro Screw restrictor, without hole

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request

VV Trasparente in vetro Instrument glass

M3B-ABS 50/63/FCA-FNA/FR
R Indice rosso regolabile Adjustable red mark pointer

26
