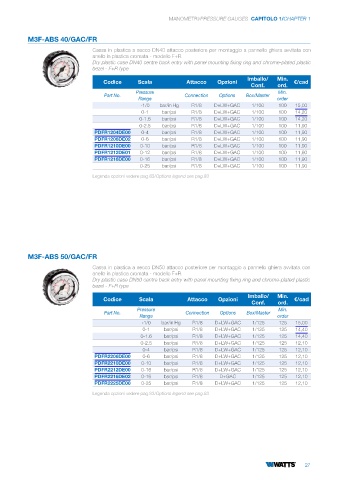

Page 29 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3F-ABS 40/GAC/FR
Cassa in plastica a secco DN40 attacco posteriore per montaggio a pannello ghiera avvitata con
anello in plastica cromata - modello F+R.
Dry plastic case DN40 centre back entry with panel mounting fixing ring and chrome-plated plastic
bezel - F+R type
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW+GAC 1/100 100 15,00
0-1 bar/psi R1/8 D+LW+GAC 1/100 100 14,20
0-1.6 bar/psi R1/8 D+LW+GAC 1/100 100 14,20
0-2.5 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
PDFR1204DE00 0-4 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
PDFR1206DE02 0-6 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
PDFR1210DE00 0-10 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
PDFR1212DE01 0-12 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
PDFR1216DE00 0-16 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
0-25 bar/psi R1/8 D+LW+GAC 1/100 100 11,90
Legenda opzioni vedere pag.83/Options legend see pag.83

M3F-ABS 50/GAC/FR

Cassa in plastica a secco DN50 attacco posteriore per montaggio a pannello ghiera avvitata con
anello in plastica cromata - modello F+R.
Dry plastic case DN50 centre back entry with panel mounting fixing ring and chrome-plated plastic
bezel - F+R type
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW+GAC 1/125 125 15,00
0-1 bar/psi R1/8 D+LW+GAC 1/125 125 14,40
0-1.6 bar/psi R1/8 D+LW+GAC 1/125 125 14,40
0-2.5 bar/psi R1/8 D+LW+GAC 1/125 125 12,10
0-4 bar/psi R1/8 D+LW+GAC 1/125 125 12,10
PDFR2206DE00 0-6 bar/psi R1/8 D+LW+GAC 1/125 125 12,10
PDFR2210DE00 0-10 bar/psi R1/8 D+LW+GAC 1/125 125 12,10
PDFR2212DE00 0-16 bar/psi R1/8 D+LW+GAC 1/125 125 12,10
PDFR2216DE02 0-16 bar/psi R1/8 D+GAC 1/125 125 12,10
PDFR2225DE00 0-25 bar/psi R1/8 D+LW+GAC 1/125 125 12,10

Legenda opzioni vedere pag.83/Options legend see pag.83

27
