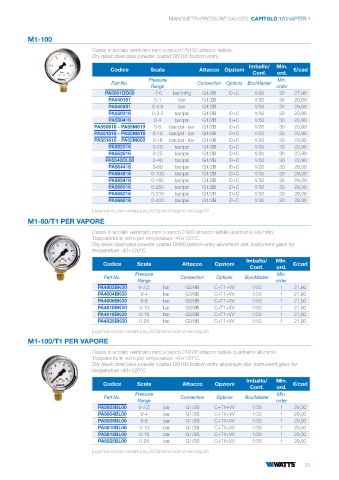

Page 33 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M1-100
Cassa in acciaio verniciato nero a secco DN100 attacco radiale.
Dry black steel case powder coated DN100 bottom entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PA5001DD00 -1/0 bar/inHg G1/2B D+C 1/30 30 27,90
PA540151 0-1 bar G1/2B 1/30 30 26,60
PA540251 0-1.6 bar G1/2B 1/30 30 26,60
PA550316 0-2.5 bar/psi G1/2B D+C 1/30 30 23,90
PA550416 0-4 bar/psi G1/2B D+C 1/30 30 23,90
PA550616 - PA55M619 0-6 bar/psi - bar G1/2B D+C 1/30 30 23,90
PA551016 - PA55M618 0-10 bar/psi - bar G1/2B D+C 1/30 30 23,90
PA551616 - PA55M602 0-16 bar/psi - bar G1/2B D+C 1/30 30 23,90
PA552016 0-20 bar/psi G1/2B D+C 1/30 30 23,90
PA552516 0-25 bar/psi G1/2B D+C 1/30 30 23,90
PA5540DL00 0-40 bar/psi G1/2B D+C 1/30 30 23,90
PA564416 0-60 bar/psi G1/2B D+C 1/30 30 29,30
PA564816 0-100 bar/psi G1/2B D+C 1/30 30 29,30
PA565416 0-160 bar/psi G1/2B D+C 1/30 30 29,30
PA566016 0-250 bar/psi G1/2B D+C 1/30 30 29,30
PA566216 0-315 bar/psi G1/2B D+C 1/30 30 29,30
PA566616 0-400 bar/psi G1/2B D+C 1/30 30 29,30

Legenda opzioni vedere pag.83/Options legend see pag.83
M1-80/T1 PER VAPORE
Cassa in acciaio verniciato nero a secco DN80 attacco radiale quadrante alluminio.
Trasparente in vetro per temperature -40+120°C.
Dry black steel case powder coated DN80 bottom entry aluminium dial. Instrument glass for
temperature -40+120°C.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PA4803BK00 0-2,5 bar G3/8B C+T1+VV 1/50 1 21,90
PA4804BK00 0-4 bar G3/8B C+T1+VV 1/50 1 21,90
PA4806BK00 0-6 bar G3/8B C+T1+VV 1/50 1 21,90
PA4810BK00 0-10 bar G3/8B C+T1+VV 1/50 1 21,90
PA4816BK00 0-16 bar G3/8B C+T1+VV 1/50 1 21,90
PA4825BK00 0-25 bar G3/8B C+T1+VV 1/50 1 21,90
Legenda opzioni vedere pag.83/Options legend see pag.83
M1-100/T1 PER VAPORE
Cassa in acciaio verniciato nero a secco DN100 attacco radiale quadrante alluminio.
Trasparente in vetro per temperature -40+120°C.
Dry black steel case powder coated DN100 bottom entry aluminium dial. Instrument glass for
temperature -40+120°C.

Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PA5803BL00 0-2,5 bar G1/2B C+T1+VV 1/30 1 29,00
PA5804BL00 0-4 bar G1/2B C+T1+VV 1/30 1 29,00
PA5806BL00 0-6 bar G1/2B C+T1+VV 1/30 1 29,00
PA5810BL00 0-10 bar G1/2B C+T1+VV 1/30 1 29,00
PA5816BL00 0-16 bar G1/2B C+T1+VV 1/30 1 29,00
PA5825BL00 0-25 bar G1/2B C+T1+VV 1/30 1 29,00
Legenda opzioni vedere pag.83/Options legend see pag.83

31
