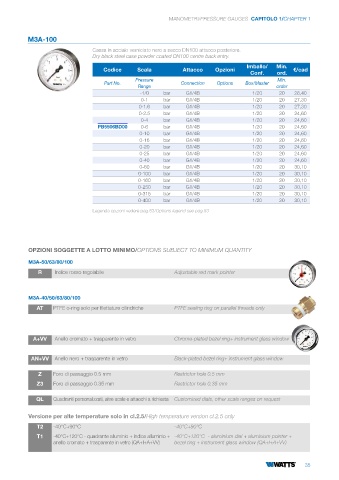

Page 37 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3A-100
Cassa in acciaio verniciato nero a secco DN100 attacco posteriore.
Dry black steel case powder coated DN100 centre back entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar G1/4B 1/20 20 28,40
0-1 bar G1/4B 1/20 20 27,30
0-1.6 bar G1/4B 1/20 20 27,30
0-2.5 bar G1/4B 1/20 20 24,60
0-4 bar G1/4B 1/20 20 24,60
PB5506BD00 0-6 bar G1/4B 1/20 20 24,60
0-10 bar G1/4B 1/20 20 24,60
0-16 bar G1/4B 1/20 20 24,60
0-20 bar G1/4B 1/20 20 24,60
0-25 bar G1/4B 1/20 20 24,60
0-40 bar G1/4B 1/20 20 24,60
0-60 bar G1/4B 1/20 20 30,10
0-100 bar G1/4B 1/20 20 30,10
0-160 bar G1/4B 1/20 20 30,10
0-250 bar G1/4B 1/20 20 30,10
0-315 bar G1/4B 1/20 20 30,10
0-400 bar G1/4B 1/20 20 30,10

Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY

M3A-50/63/80/100
R Indice rosso regolabile Adjustable red mark pointer

M3A-40/50/63/80/100
AT PTFE o-ring solo per filettature cilindriche PTFE sealing ring on parallel threads only

A+VV Anello cromato + trasparente in vetro Chrome-plated bezel ring+ instrument glass window

AN+VV Anello nero + trasparente in vetro Black-plated bezel ring+ instrument glass window

Z Foro di passaggio 0.5 mm Restrictor hole 0.5 mm
Z3 Foro di passaggio 0.35 mm Restrictor hole 0.35 mm

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request

Versione per alte temperature solo in cl.2.5/High temperature version cl.2.5 only

T2 -40°C+90°C -40°C+90°C
T1 -40°C+120°C - quadrante alluminio + indice alluminio + -40°C+120°C - aluminium dial + aluminium pointer +
anello cromato + trasparente in vetro (QA+I+A+VV) bezel ring + instrument glass window (QA+I+A+VV)
