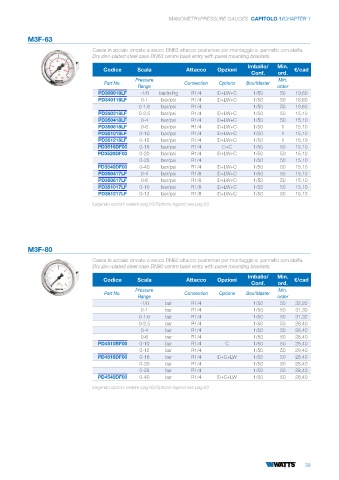

Page 41 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3F-63
Cassa in acciaio zincato a secco DN63 attacco posteriore per montaggio a pannello con staffa.
Dry zinc-plated steel case DN63 centre back entry with panel mounting brackets.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PD309918LF -1/0 bar/in Hg R1/4 D+LW+C 1/50 50 19,80
PD340118LF 0-1 bar/psi R1/4 D+LW+C 1/50 50 18,60
0-1.6 bar/psi R1/4 1/50 50 18,60
PD350318LF 0-2.5 bar/psi R1/4 D+LW+C 1/50 50 15,10
PD350418LF 0-4 bar/psi R1/4 D+LW+C 1/50 50 15,10
PD350618LF 0-6 bar/psi R1/4 D+LW+C 1/50 1 15,10
PD351018LF 0-10 bar/psi R1/4 D+LW+C 1/50 1 15,10
PD351218LF 0-12 bar/psi R1/4 D+LW+C 1/50 1 15,10
PD3516DF00 0-16 bar/psi R1/4 D+C 1/50 50 15,10
PD3520DF00 0-20 bar/psi R1/4 D+LW+C 1/50 50 15,10
0-25 bar/psi R1/4 1/50 50 15,10
PD3540DF00 0-40 bar/psi R1/4 D+LW+C 1/50 50 15,10
PD350417LF 0-4 bar/psi R1/8 D+LW+C 1/50 50 15,10
PD350617LF 0-6 bar/psi R1/8 D+LW+C 1/50 50 15,10
PD351017LF 0-10 bar/psi R1/8 D+LW+C 1/50 50 15,10
PD351217LF 0-12 bar/psi R1/8 D+LW+C 1/50 50 15,10
Legenda opzioni vedere pag.83/Options legend see pag.83

M3F-80
Cassa in acciaio zincato a secco DN80 attacco posteriore per montaggio a pannello con staffa.
Dry zinc-plated steel case DN80 centre back entry with panel mounting brackets.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar R1/4 1/50 50 32,20
0-1 bar R1/4 1/50 50 31,30
0-1.6 bar R1/4 1/50 50 31,30
0-2.5 bar R1/4 1/50 50 28,40
0-4 bar R1/4 1/50 50 28,40
0-6 bar R1/4 1/50 50 28,40
PD4510BF00 0-10 bar R1/4 C 1/50 50 28,40
0-12 bar R1/4 1/50 50 28,40
PD4516DF00 0-16 bar R1/4 D+C+LW 1/50 50 28,40
0-20 bar R1/4 1/50 50 28,40
0-25 bar R1/4 1/50 50 28,40
PD4540DF00 0-40 bar R1/4 D+C+LW 1/50 50 28,40
Legenda opzioni vedere pag.83/Options legend see pag.83

39
