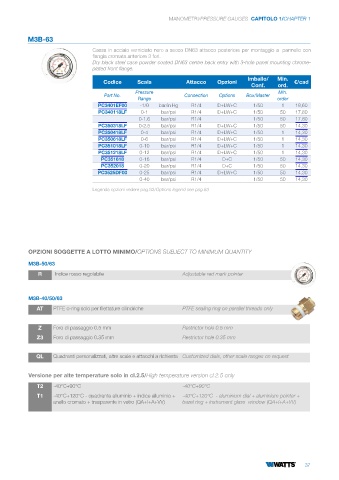

Page 39 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3B-63
Cassa in acciaio verniciato nero a secco DN63 attacco posteriore per montaggio a pannello con
flangia cromata anteriore 3 fori.
Dry black steel case powder coated DN63 centre back entry with 3-hole panel mounting chrome-
plated front flange.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PC3401EF00 -1/0 bar/in Hg R1/4 D+LW+C 1/50 1 18,60
PC340118LF 0-1 bar/psi R1/4 D+LW+C 1/50 50 17,80
0-1.6 bar/psi R1/4 1/50 50 17,80
PC350318LF 0-2.5 bar/psi R1/4 D+LW+C 1/50 50 14,30
PC350418LF 0-4 bar/psi R1/4 D+LW+C 1/50 1 14,30
PC350618LF 0-6 bar/psi R1/4 D+LW+C 1/50 1 14,30
PC351018LF 0-10 bar/psi R1/4 D+LW+C 1/50 1 14,30
PC351218LF 0-12 bar/psi R1/4 D+LW+C 1/50 1 14,30
PC351618 0-16 bar/psi R1/4 D+C 1/50 50 14,30
PC352018 0-20 bar/psi R1/4 D+C 1/50 50 14,30
PC3525DF00 0-25 bar/psi R1/4 D+LW+C 1/50 50 14,30
0-40 bar/psi R1/4 1/50 50 14,30
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY

M3B-50/63
R Indice rosso regolabile Adjustable red mark pointer

M3B-40/50/63
AT PTFE o-ring solo per filettature cilindriche PTFE sealing ring on parallel threads only

Z Foro di passaggio 0.5 mm Restrictor hole 0.5 mm
Z3 Foro di passaggio 0.35 mm Restrictor hole 0.35 mm

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request

Versione per alte temperature solo in cl.2.5/High temperature version cl.2.5 only
T2 -40°C+90°C -40°C+90°C
T1 -40°C+120°C - quadrante alluminio + indice alluminio + -40°C+120°C - aluminium dial + aluminium pointer +
anello cromato + trasparente in vetro (QA+I+A+VV) bezel ring + instrument glass window (QA+I+A+VV)
