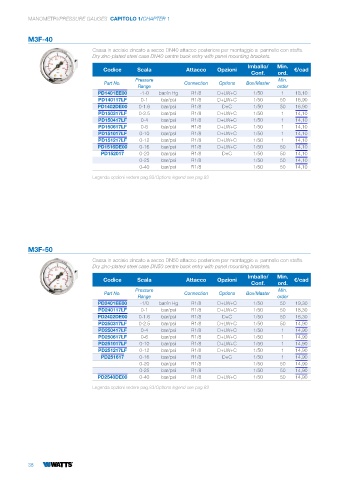

Page 40 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3F-40
Cassa in acciaio zincato a secco DN40 attacco posteriore per montaggio a pannello con staffa.
Dry zinc-plated steel case DN40 centre back entry with panel mounting brackets.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PD1401EE00 -1-0 bar/in Hg R1/8 D+LW+C 1/50 1 18,10
PD140117LF 0-1 bar/psi R1/8 D+LW+C 1/50 50 16,90
PD1402DE00 0-1.6 bar/psi R1/8 D+C 1/50 50 16,90
PD150317LF 0-2.5 bar/psi R1/8 D+LW+C 1/50 1 14,10
PD150417LF 0-4 bar/psi R1/8 D+LW+C 1/50 1 14,10
PD150617LF 0-6 bar/psi R1/8 D+LW+C 1/50 1 14,10
PD151017LF 0-10 bar/psi R1/8 D+LW+C 1/50 1 14,10
PD151217LF 0-12 bar/psi R1/8 D+LW+C 1/50 1 14,10
PD1516DE00 0-16 bar/psi R1/8 D+LW+C 1/50 50 14,10
PD152017 0-20 bar/psi R1/8 D+C 1/50 50 14,10
0-25 bar/psi R1/8 1/50 50 14,10
0-40 bar/psi R1/8 1/50 50 14,10
Legenda opzioni vedere pag.83/Options legend see pag.83

M3F-50
Cassa in acciaio zincato a secco DN50 attacco posteriore per montaggio a pannello con staffa.
Dry zinc-plated steel case DN50 centre back entry with panel mounting brackets.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
PD2401EE00 -1/0 bar/in Hg R1/8 D+LW+C 1/50 50 19,30
PD240117LF 0-1 bar/psi R1/8 D+LW+C 1/50 50 18,30
PD2402DE00 0-1.6 bar/psi R1/8 D+C 1/50 50 18,30
PD250317LF 0-2.5 bar/psi R1/8 D+LW+C 1/50 50 14,90
PD250417LF 0-4 bar/psi R1/8 D+LW+C 1/50 1 14,90
PD250617LF 0-6 bar/psi R1/8 D+LW+C 1/50 1 14,90
PD251017LF 0-10 bar/psi R1/8 D+LW+C 1/50 1 14,90
PD251217LF 0-12 bar/psi R1/8 D+LW+C 1/50 1 14,90
PD251617 0-16 bar/psi R1/8 D+C 1/50 1 14,90
0-20 bar/psi R1/8 1/50 50 14,90
0-25 bar/psi R1/8 1/50 50 14,90
PD2540DE00 0-40 bar/psi R1/8 D+LW+C 1/50 50 14,90
Legenda opzioni vedere pag.83/Options legend see pag.83
