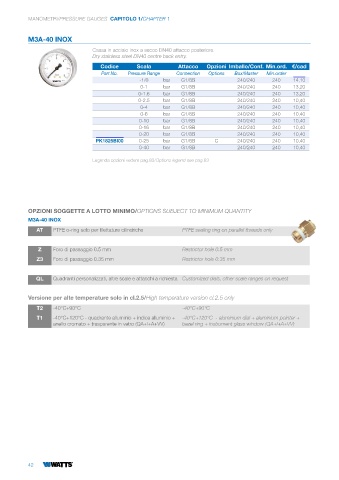

Page 44 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3A-40 INOX
Cassa in acciaio inox a secco DN40 attacco posteriore.
Dry stainless steel DN40 centre back entry.
Codice Scala Attacco Opzioni Imballo/Conf. Min.ord. €/cad
Part No. Pressure Range Connection Options Box/Master Min.order
-1/0 bar G1/8B 240/240 240 14,10
0-1 bar G1/8B 240/240 240 13,20
0-1.6 bar G1/8B 240/240 240 13,20
0-2.5 bar G1/8B 240/240 240 10,40
0-4 bar G1/8B 240/240 240 10,40
0-6 bar G1/8B 240/240 240 10,40
0-10 bar G1/8B 240/240 240 10,40
0-16 bar G1/8B 240/240 240 10,40
0-20 bar G1/8B 240/240 240 10,40
PK1825BI00 0-25 bar G1/8B C 240/240 240 10,40
0-40 bar G1/8B 240/240 240 10,40
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY
M3A-40 INOX
AT PTFE o-ring solo per filettature cilindriche PTFE sealing ring on parallel threads only

Z Foro di passaggio 0.5 mm Restrictor hole 0.5 mm
Z3 Foro di passaggio 0.35 mm Restrictor hole 0.35 mm

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request

Versione per alte temperature solo in cl.2.5/High temperature version cl.2.5 only

T2 -40°C+90°C -40°C+90°C
T1 -40°C+120°C - quadrante alluminio + indice alluminio + -40°C+120°C - aluminium dial + aluminium pointer +
anello cromato + trasparente in vetro (QA+I+A+VV) bezel ring + instrument glass window (QA+I+A+VV)

42
