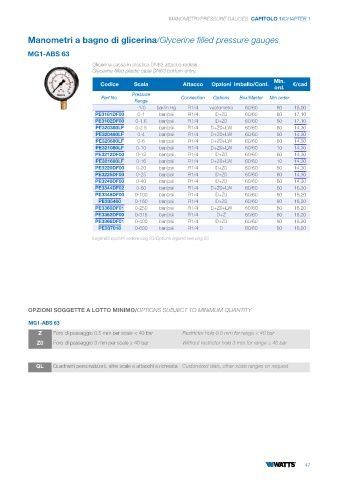

Page 49 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

Manometri a bagno di glicerina/Glycerine filled pressure gauges

MG1-ABS 63

Glicerina cassa in plastica DN63 attacco radiale.
Glycerine filled plastic case DN63 bottom entry.
Min.
Codice Scala Attacco Opzioni Imballo/Conf. €/cad
ord.
Pressure
Part No. Connection Options Box/Master Min.order
Range
-1/0 bar/in Hg R1/4 vuotometro 60/60 60 18,00
PE3101DF00 0-1 bar/psi R1/4 D+Z0 60/60 60 17,10
PE3102DF00 0-1.6 bar/psi R1/4 D+Z0 60/60 60 17,10
PE320380LF 0-2.5 bar/psi R1/4 D+Z0+LW 60/60 60 14,30
PE320480LF 0-4 bar/psi R1/4 D+Z0+LW 60/60 60 14,30
PE320680LF 0-6 bar/psi R1/4 D+Z0+LW 60/60 60 14,30
PE321080LF 0-10 bar/psi R1/4 D+Z0+LW 60/60 10 14,30
PE3212DF00 0-12 bar/psi R1/4 D+Z0 60/60 60 14,30
PE321680LF 0-16 bar/psi R1/4 D+Z0+LW 60/60 10 14,30
PE3220DF00 0-20 bar/psi R1/4 D+Z0 60/60 60 14,30
PE3225DF00 0-25 bar/psi R1/4 D+Z0 60/60 60 14,30
PE3240DF00 0-40 bar/psi R1/4 D+Z0 60/60 60 14,30
PE3344DF02 0-60 bar/psi R1/4 D+Z0+LW 60/60 60 16,20
PE3348DF00 0-100 bar/psi R1/4 D+Z0 60/60 60 16,20
PE335480 0-160 bar/psi R1/4 D+Z0 60/60 60 16,20
PE3360DF01 0-250 bar/psi R1/4 D+Z0+LW 60/60 60 16,20
PE3362DF00 0-315 bar/psi R1/4 D+Z 60/60 60 16,20
PE3366DF01 0-400 bar/psi R1/4 D+Z0 60/60 60 16,20
PE337018 0-600 bar/psi R1/4 D 60/60 60 16,20

Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY

MG1-ABS 63
Z Foro di passaggio 0.5 mm per scale < 40 bar Restrictor hole 0.5 mm for range < 40 bar
Z0 Foro di passaggio 3 mm per scale ≥ 40 bar Without restrictor hole 3 mm for range ≥ 40 bar

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request
