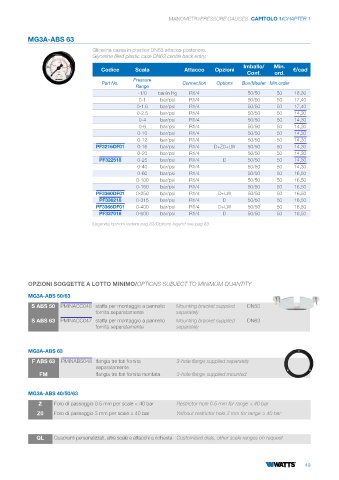

Page 51 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

MG3A-ABS 63
Glicerina cassa in plastica DN63 attacco posteriore.
Glycerine filled plastic case DN63 centre back entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure
Part No. Connection Options Box/Master Min.order
Range
-1/0 bar/in Hg R1/4 50/50 50 18,30
0-1 bar/psi R1/4 50/50 50 17,40
0-1.6 bar/psi R1/4 50/50 50 17,40
0-2.5 bar/psi R1/4 50/50 50 14,30
0-4 bar/psi R1/4 50/50 50 14,30
0-6 bar/psi R1/4 50/50 50 14,30
0-10 bar/psi R1/4 50/50 50 14,30
0-12 bar/psi R1/4 50/50 50 14,30
PF3216DF01 0-16 bar/psi R1/4 D+Z0+LW 50/50 50 14,30
0-20 bar/psi R1/4 50/50 50 14,30
PF322518 0-25 bar/psi R1/4 D 50/50 50 14,30
0-40 bar/psi R1/4 50/50 50 14,30
0-60 bar/psi R1/4 50/50 50 16,50
0-100 bar/psi R1/4 50/50 50 16,50
0-160 bar/psi R1/4 50/50 50 16,50
PF3360DF01 0-250 bar/psi R1/4 D+LW 50/50 50 16,50
PF336218 0-315 bar/psi R1/4 D 50/50 50 16,50
PF3366DF01 0-400 bar/psi R1/4 D+LW 50/50 50 16,50
PF337018 0-600 bar/psi R1/4 D 50/50 50 16,50
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY
MG3A-ABS 50/63
S ABS 50 PMINACC048 staffa per montaggio a pannello Mounting bracket supplied DN50
fornita separatamente separately
S ABS 63 PMINACC047 staffa per montaggio a pannello Mounting bracket supplied DN63
fornita separatamente separately

MG3A-ABS 63
F ABS 63 PMINABS048 flangia tre fori fornita 3-hole flange supplied separately
separatamente
FM flangia tre fori fornita montata 3-hole flange supplied mounted

MG3A-ABS 40/50/63
Z Foro di passaggio 0.5 mm per scale < 40 bar Restrictor hole 0.5 mm for range < 40 bar
Z0 Foro di passaggio 3 mm per scale ≥ 40 bar Without restrictor hole 3 mm for range ≥ 40 bar

QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request
