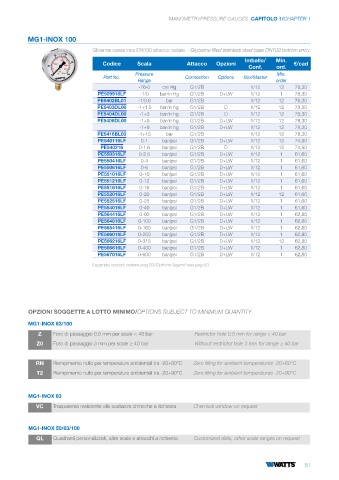

Page 53 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

MG1-INOX 100
Glicerina cassa inox DN100 attacco radiale. - Glycerine filled stainless steel case DN100 bottom entry.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-76-0 cm Hg G1/2B 1/12 12 78,30
PE509916LF -1/0 bar/in Hg G1/2B D+LW 1/12 1 78,30
PE5402BL01 -1/0.6 bar G1/2B 1/12 12 78,30
PE5403DL00 -1+1.5 bar/in hg G1/2B D 1/12 12 78,30
PE5404DL00 -1+3 bar/in hg G1/2B D 1/12 12 78,30
PE5406DL00 -1+5 bar/in hg G1/2B D+LW 1/12 12 78,30
-1+9 bar/in hg G1/2B D+LW 1/12 12 78,30
PE5416BL00 -1+15 bar G1/2B 1/12 12 78,30
PE540116LF 0-1 bar/psi G1/2B D+LW 1/12 12 74,90
PE540216 0-1.6 bar/psi G1/2B D 1/12 12 74,90
PE550316LF 0-2.5 bar/psi G1/2B D+LW 1/12 1 61,60
PE550416LF 0-4 bar/psi G1/2B D+LW 1/12 1 61,60
PE550616LF 0-6 bar/psi G1/2B D+LW 1/12 1 61,60
PE551016LF 0-10 bar/psi G1/2B D+LW 1/12 1 61,60
PE551216LF 0-12 bar/psi G1/2B D+LW 1/12 1 61,60
PE551616LF 0-16 bar/psi G1/2B D+LW 1/12 1 61,60
PE552016LF 0-20 bar/psi G1/2B D+LW 1/12 12 61,60
PE552516LF 0-25 bar/psi G1/2B D+LW 1/12 1 61,60
PE554016LF 0-40 bar/psi G1/2B D+LW 1/12 1 61,60
PE564416LF 0-60 bar/psi G1/2B D+LW 1/12 1 62,80
PE564816LF 0-100 bar/psi G1/2B D+LW 1/12 1 62,80
PE565416LF 0-160 bar/psi G1/2B D+LW 1/12 1 62,80
PE566016LF 0-250 bar/psi G1/2B D+LW 1/12 1 62,80
PE566216LF 0-315 bar/psi G1/2B D+LW 1/12 12 62,80
PE566616LF 0-400 bar/psi G1/2B D+LW 1/12 1 62,80
PE567016LF 0-600 bar/psi G1/2B D+LW 1/12 1 62,80
Legenda opzioni vedere pag.83/Options legend see pag.83

OPZIONI SOGGETTE A LOTTO MINIMO/OPTIONS SUBJECT TO MINIMUM QUANTITY
MG1-INOX 63/100
Z Foro di passaggio 0.5 mm per scale < 40 bar Restrictor hole 0.5 mm for range < 40 bar

Z0 Foro di passaggio 3 mm per scale ≥ 40 bar Without restrictor hole 3 mm for range ≥ 40 bar

RN Riempimento nullo per temperature ambientali tra -20+60°C Zero filling for ambient temperatures -20+60°C
T2 Riempimento nullo per temperature ambientali tra -20+90°C Zero filling for ambient temperatures -20+90°C

MG1-INOX 63
VC Trasparente resistente alle sostanze chimiche a richiesta Chemical window on request

MG1-INOX 50/63/100
QL Quadranti personalizzati, altre scale e attacchi a richiesta Customized dials, other scale ranges on request
